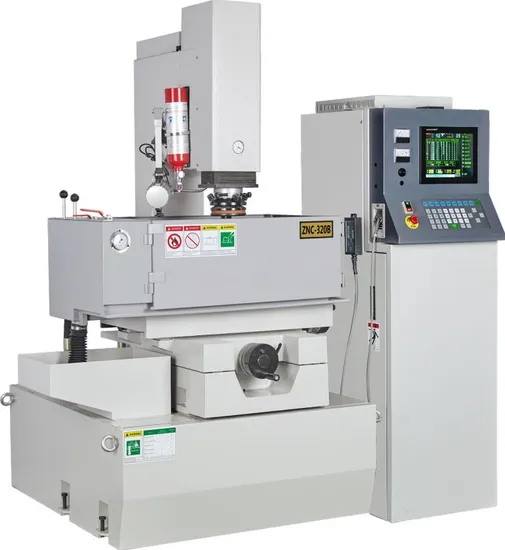

Znc EDM Spark Machine Professional High Precision 3-Axis CNC High-Efficiency Processing Equipment Spark Machine

Product Description

Product Description
Introduction to the Functions of ZNC EDM
01. Provide more than 20,000 groups of files stored (mainly by the size of the internal hard disk), you can store
more than 20,000 different mold processing conditions, with multiple sets of processing coordinates storage function

02. With mirror surface processing circuit, it can really etch out the mirror surface effect with shaking processing and powder mixing processing for better effect.

03. It has the automatic trimming function of the IO segment and
(1) can self-edit: edit the processing conditions according to personal experience:
(2) AUTOZ automatic editing gives the maximum depth initial current and the completed thickness and processing area selection, and the processing conditions will be automatically edited
( 3) FUZZY Z intelligent condition editing will automatically edit the processing conditions as long as you select the electrode shape, the cross-sectional area of the electrode and the workpiece material, and complete the thickness selection and depth setting after processing. The above three editing methods can be selected from coarse-one-medium- +Finish the processing in one go.

04. The XYZ axis coordinates can be switched between metric and imperial systems.

05. The xv lock function can prevent the workpiece from being damaged by continuing processing after the XV is
moved during processing.

06. The Z-axis locking function is convenient for discharge calibration and use with shaking (translational devices).

07. The conditions of the processing section or pre-processing section can be modified and adjusted at any time
during processing.

08. Automatic Carbon Detection Function In case of carbon buildup and unstable processing image, the computer
will automatically adjust each processing parameter and raise the height of the slag discharge, and then automatically recover when it stabilizes.

09. It is possible to set the discharge 210 times to pull up to the set arbitrary position and then go down to process,
and it has a good slag discharge effect for deep hole processing.

10. With the function of eliminating secondary discharge.

11. With discharge edge searching and fast pull-up function, it is convenient and more accurate to visually detect that
the electrode (copper work) has touched the workpiece.

12. With the energy control function for more uniform processing results, the switchable energy control allows
for faster graphite processing.
13.The upward discharge machining function makes it easier to machine special workpieces.

14. With two separate machining coordinate systems the male and female molds can be centered or machined in
different coordinate systems.

15. After power failure and then restart the system automatically load the last processing conditions and
processing coordinates, you can not move the panel of any key and directly press the line control box discharge.

16. With two speeds of slag removal, the servo speed and efficiency of large-area machining can be improved
while ensuring that the electrode is not pulled out of shape.

17. The function of storing coordinates and machining data separately allows you to quickly add the same
machining conditions to different workpieces.

18.Discharge timer and power-on timer.

19.The two high-voltage circuits can be equipped with a voltage divider or a current divider, depending on the customer's needs.

20. The industrial-grade PC-BASE controller and the new DOM memory are used to replace the traditional
hard disk, which is faster in reading files, has extremely high stability and is more suitable for industrial purposes.

21.The automatic screen protection function makes the display last longer.

22. The newly designed electrical control box and 15" LCD (display) comply with European CE safety
standards and can be musk-proof, waterproof, and anti-interference to extend the life of the electronic board.
Detailed Photos

ZNC-350A

ZNC-350B

ZNC-450

ZNC-540

ZNC-650

ZNC-750

Product Parameters

Specifications / Model	ZNC-350A	ZNC-350B	ZNC-450	ZNC-540	ZNC-650	ZNC-750
Stroke(mm)	X=300 Y=200	X=400 Y=300	X=450 Y=350	X=500 Y=400	X=600 Y=500	X=700 Y=500
	Z=180 Z1=200	Z=200 Z1=200	Z=200 Z1=200	Z=200 Z1=250	Z=250 Z1=280	Z=250 Z1=280
Table size (mm)	550*280	650*320	700*400	800*450	1000*550	1100*600
Electrode load (KG)	80	130	180	200	250	300
Working load (KG)	600	1100	1200	1500	2000	2200
Max. workpiece size (mm)	720*490*450	840*550*530	1100*680*580	1130*720*620	1400*900*800	1650*1100*900
Outer diameter of oil sump (mm)	960*530*420	1100*600*400	1150*720*450	1470*820*520	1800*1000*600	1900*1140*600
Outer diameter of oil tank (mm)	900*1150*450	1150*900*580	1150*900*500	1380*1000*520	1900*1200*600	2000*1300*600
Fuel tank volume (L)	360	420	480	600	800	1000
Total mechanical weight (KG)	900	1500	1700	2000	3600	4000

Control Power Supply Cabinet

*Top-mounted heat dissipation device
*The handheld hand controller makes operation more convenient.
*The three-door design makes it convenient for later maintenance.
*High-resolution industrial monitors are resistant to interference and have a long service life.
*The rotatable operator console makes it convenient to operate and provides multi-angle visibility.
*The reinforced sheet metal enclosure is sturdy and durable.

Model	30A		50A	75A	100A	30A	50A	75A	100A
Control method, Number of axes,	Numerical control closed-loop, Single-axis numerical control					Numerical control closed-loop, Three-axis numerical control
XYZ minimum set size	0.005mm(0.001mm)
XYZ maximum set size	999.995mm(999.999mm)
Coordinate system	incremental coordinates (INC), absolute coordinates (ABS)
Moving speed	0.005mm (0.001mm) per unit x1, x5, x10
Maximum processing current	A	30	50	75	100	30	50	75	100
Input power	KVA	4	6	8	12	4	6	8	12
Maximum processing speed	mm/min	220	360	540	720	220	360	540	720
Electric consumption	%	<0.2
Optimum surface roughness	μmRa	0.2	0.23		0.25	0.18	0.2		0.23
Dimensions (length x width x height)	mm	830*720*1850			830*840*1850	830*720*1850			830*840*1850
Package dimensions (length x width x height)	mm	930*820*2050			930*940*2050	930*820*2050			930*940*2050
Net weight	Kgs	265	270	275	350	265	270	275	350
Number of machining setting groups		1				30
Number of machining setting segments		10				10
Machining method		Upward machining, Downward machining				XY mode (Z-axis locked), XYZ mode
Swing method						square, cross, cross-shaped, circular, hexagonal, side-mounted
Number of continuous drilled holes		1 hole				100 holes (fixed hole can be repeated for 4000 times processing)

Installation Instructions

Company Profile

FAQ

Q: How long is the product warranty ?
A:12 months
Q: Does Your Machinery Have High Machining Accuracy ?
A:Our processing accuracy can reach 0.01-0.02 mm.
Q: Do you have after sales service ?
A: Yes, We have a one-year warranty
Q: Do you test your machine before delivery ?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.

---
