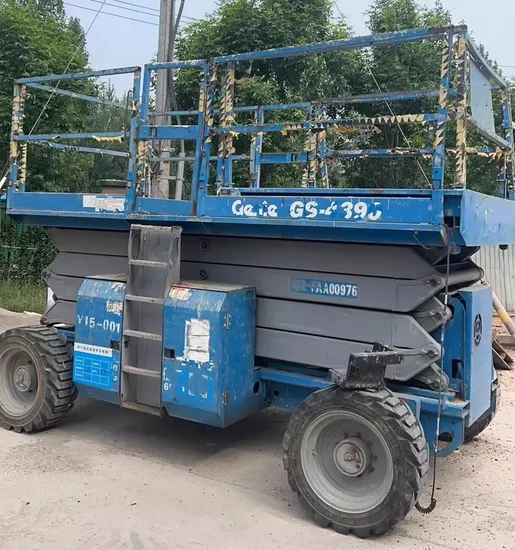

Best Used Genie GS4390 Aerial Work Platform Full Automatic Electric Scissor Lift

Product Description

Pay Attention please!
Our company mainly sells used sanitation trucks! Different prices for different years! Please contact us for details!
Heavy-Duty Genie GS4390 Platform Lift for Construction Sites
Features of the Genie GS4390 shear forklift include superior performance, the ability to traverse rough terrain, durability, and the ability to increase operator productivity.
Designed to traverse rugged terrain environments, the Genie GS4390 Shear Lift Truck delivers superior performance for demanding outdoor construction sites. This durable piece of equipment is ideal for increasing operator productivity. It comes with the following features:
PERFORMANCE FEATURES:The Genie GS4390 Shear Forklift is powered by a 36-horsepower engine that delivers powerful and efficient performance. The four-wheel drive and front-wheel steering design, as well as the optional oscillating axle system, dramatically improves off-road performance, with up to 40% climbing capacity, to adapt to all kinds of harsh working conditions
In addition, the full-height travel function saves time for repeated lifting and lowering, improving work efficiency.
Durability: Designed for ruggedness and durability, this scissor lift truck is ideal for large-scale outdoor construction. Its simple structure, low maintenance cost and modular, lightweight and universal design effectively reduces customers' spare parts inventory. The pull-out engine tray design makes regular maintenance more convenient and quicker.
Safety performance: Genie GS4390 shear forklift trucks are equipped with tilt sensors and audible alarms, four-wheel brakes, drop alarms, electric horns and other safety equipment to ensure safety during operation
Carrying capacity: The platform can accommodate up to 7 people and has a carrying capacity of 1,500 lbs (about 680 kg). The spacious platform and flexible handling provide the operator with an excellent driving experience and handling feel.
Adapt to complex working conditions: GS-5390 is equipped with one-touch leveling legs to adapt to complex working conditions, and optional dual extension platform and super extension platform to effectively enhance the efficiency of on-site work.
To summarize, with its excellent performance, strong off-road capability, low maintenance cost and high safety, Genie GS4390 scissor lift truck is the ideal choice for improving construction efficiency.


Product Parameters

Models
Measurements
Working height max.	15.11m
Platform height max	13.11m
Platform height max.	1.80m
Platform height - stowed	3.98m
Platform length - outside	5.34m
Platform length - Outside, extended single deck	6.57m
Platform length - Outside, extended dual deck	1.52m
Slide-out platform extension deck - front	1.52m
Slide-out platform extension deck - rear	1.22m
Platform width - outside	1.83m
Height - stowed (folding rails)	2.93m
Height - stowed (rails lowered)	2.25m
Length - stowed, single deck	3.94m
Length - stowed, dual deck	3.98m
Length - stowed, with outriggers	4.88m
Length - extended, single deck	5.40m
Length - extended, dual deck	6.57m
Width (standard tires)	2.34m
Wheelbase	2.84m
Ground clearance (center)	36cm

Productivity
Max. platform occupancy (in/out)	7/7
Lift capacity	680 kg
Lift capacity - extension deck extended	227 kg
Max. platform drive height	13.11m
Drive speed - stowed	8.0 km/h
Drive speed - raised	1.1 km/h
Gradeability - stowed	0.5
Turning radius - inside/outside	2.16m/ 5.33m
Lifting speed - raise/lower	45/39 sec
Max. outrigger leveling (front to back /side to side)	7°/ 12°
Tires - Foam-filled rough terrain	30 × 84 cm

Power
Power	Diesel
Fuel Tank	75.7 L
Hydraulic tank capacity	113.6 L
Weight	5,849 kg
Weight with outriggers	6,628 kg
Additional weight, optional dual deck	356 kg
Additional weight, optional super deck	411 kg
Additional weight, optional generator	48 kg
Tire load max.	2,142 kg
Tire contact pressure - front, platform fully extended	794 kPa
Occupied floor pressure	7.98 kPa

Sound and Vibration Levels
Sound Pressure level (ground workstation)	< 88 dBA
Sound Pressure level (platform workstation)	< 78 dBA
Vibrations	< 2.5m/s2

Detailed Photos


FAQ
1. Q: How about the quality of your trucks?
A: Wuhan Ring Valley Environment mainly sells medium and high-end sanitation trucks, no matter the chassis, engine and so on are all belong to the top equipment. Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates.
2. Q: Is there any advantages of your price?
A: We don't only have new truck but a large selection of used trucks. Different products in different years are available at different prices. We'll be sure to help you find the best vehicle in suitable price.
3. Price term: FOB, CIF.
4. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
5. Delivery time: 7-20 working days after payment is received.
6. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
If you have any other questions, please feel free to contact us at any time.

---
