M2m Smart Grid TCP/IP GPS VPN 4G 3G CDMA EVDO Serial Modem

Product Description

Product Description

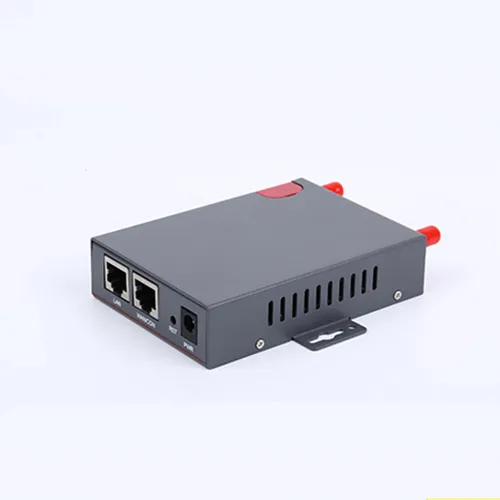

H20series M2m Smart Grid TCP/IP GPS VPN 4G 3G CDMA EVDO Serial Modem
H20series CDMA EVDO serial modem Designed with industrial grade, with TCP/IP stack, supports transparent data transmission, AT Command, RS232/485, remote configuration and control, with embedded Operation System, such as LINUX and WINDOWS OS, can be used as a modem for sending SMS, always online function makes data communication in real-time, etc. It has been used for data communication/acquisition, remote control and minotring, M2M appliation, etc.
Product Parameters
Details
Wireless Specification
1. Compliant with CDMA2000 1X EVDO Rev A
2. Download speed: 3.1Mbps, upload speed: 1.8Mbps
3. Compliant with S-95 A/B and CDMA2000 1xRTT
4. Support 13K QCELP audio codec
Hardware System
1. High-powered MCU, 100M
2. Interface:
RS232/RS485 serial port, rates: 110~230400bits/s
Indicator lights: "Power", "ACT", "Online"
Antenna interface: Standard SMA female interface, 50 ohm
SIM/UIM interface: Standard user card interface
Power interface: Standard 3-PIN power jack
3. Power supply:
Standard power supply: DC 12V/1.5A
Power range: DC 5~35V
4. Wireless module:
High-powered industrial CDMA2000 1X EVDO module
5. Size:
Outline dimension: 102x73.5x25.5 mm
6. Weight: 450 g
7. Others:
Operation temperature: -35~+75C
Storage temperature: -40~+85C
Humidity: 95% (unfreezing)
Software function
1. Adopt smart online keeping technology to make sure that IP MODEM is always online
2. Support transparent SMS data transfer
3. Support several work modes
4. Support server and client functions
5. Support CSD function
6. Support hardware and software WDT
7. Reporting the status of data transfer
8. Standard AT command interface
9. Support common MODEM function
10. Support console upgrade firmware
11. Support multi OS, such as WINDOWS, LINUX, SCO UNIX etc.
Models:

Homtecs	H20 Series Industrial Cellular Router
Model	4G	3G	DL	UL	Interface	WiFi	GPS
H20-FALT	FDD/TDD LTE	UMTS	100Mbps	50Mbps	2XLAN
H20-FALT-W	FDD/TDD LTE	UMTS	100Mbps	50Mbps	2XLAN		Y
H20-FALT-G	FDD/TDD LTE	UMTS	100Mbps	50Mbps	2XLAN		Y
H20-FALT-GW	FDD/TDD LTE	UMTS	100Mbps	50Mbps	2XLAN	Y	Y
H20-FA2T	FDD/TDD LTE	UMTS	100Mbps	50Mbps	1XLAN 1XRS232
H20-FA2T-W	FDD/TDD LTE	UMTS	100Mbps	50Mbps	1XLAN 1XRS232	Y
H20-FA4T	FDD/TDD LTE	UMTS	100Mbps	50Mbps	1XLAN 1XRS485
H20-FA4T-W	FDD/TDD LTE	UMTS	100Mbps	50Mbps	1XLAN 1XRS485	Y
H20-WALT		HSPA+	21Mbps	5.76Mbps	2XLAN
H20-WALT-W		HSPA+	21Mbps	5.76Mbps	2XLAN	Y
H20-WALT-G		HSPA+	21Mbps	5.76Mbps	2XLAN		Y
H20-WALT-GW		HSPA+	21Mbps	5.76Mbps	2XLAN	Y	Y
H20-WA2T		HSPA+	21Mbps	5.76Mbps	1XLAN 1XRS232
H20-WA2T-W		HSPA+	21Mbps	5.76Mbps	1XLAN 1XRS232	Y
H20-WA4T		HSPA+	21Mbps	5.76Mbps	1XLAN 1XRS485
H20-WA4T-W		HSPA+	21Mbps	5.76Mbps	1XLAN 1XRS485	Y
