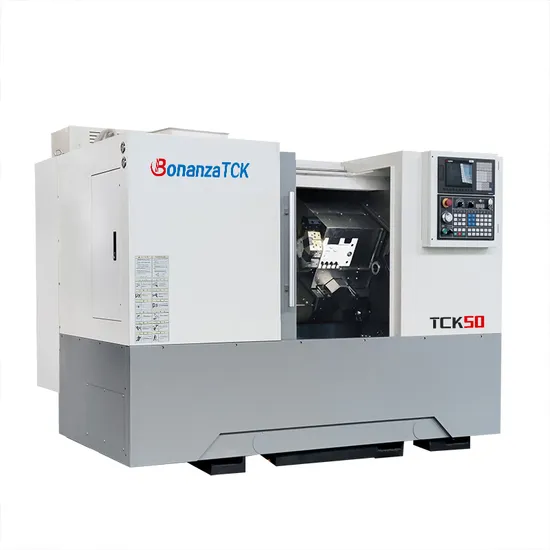

CNC Machine Tools Horizontal Machining Center CNC Lathe Machine High Rigidity Tck50

Product Description

Product Description

Project		Units	Specifications	Remarks
Maximum turning diameter on bed		mm	600
Maximum cutting length		mm	500
Maximum cutting diameter		mm	460
Standard cutting diameter		mm	340
Maximum turning diameter on a skateboard		mm	400
Spindle end type and code			A2-6	Motorized spindle
Main shaft hole diameter		mm	65
Pass bar diameter		mm	50
Single spindle Headstock	Spindle speed range / Maximum output torque of spindle	r/min/Nm	50 ~ 4500/144
Spindle driver		Power	30KW
Standard chuck	Chuck diameter	inch	8 "hollow hydraulic chuck
X-axis fast shift speed		m/min	30
Z-axis fast shift speed		m/min	30
X-axis travel		mm	280
Z-axis stroke		mm	550
Y-axis stroke		mm	50 + / - 50
C-axis stroke		mm	360 °
Standard knife holder form		BMT55	Horizontal 12 station power cutter tower
Tailstock travel		mm	450
Tailstock spindle cone hole taper		Mohs	4# (small spindle)
Turning knife	Outer round knife holder	mm	25 x 25

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,
Vertical Machining Center ,Lathe Machines and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: What about your warranty?
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
8:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems

---
