High Speed 16-18m/S Low/High Carbon Steel Copper Straight Type Line Wire Mesh Welding Making Rod Drawing Machine Price for Nail Making/Barbed Wire/Fence Mesh

Product Description

Product Description
Product Description:

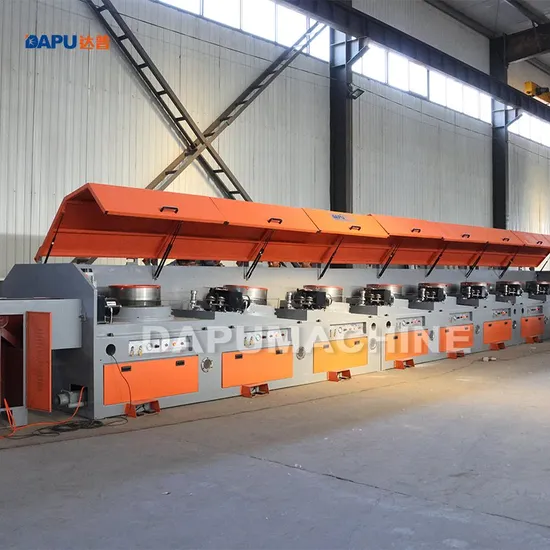

The wire drawing machine is used to draw the wire diameter from big to small.
Finished small wire can be used to make nails, binding wire, welding mesh etc. construction site.
2. The Parameters of Wire Drawing Machine

Model	LZ-560
Raw material	Low-carbon steel wire,wire tensile strength≤550MPa
Number of blocks	Max.12pcs
Input wire diameter	8.0mm, 6.5mm,5.5mm
Output wire diameter	4mm, 3mm, 2.5mm,2.2mm, 2mm,1.8mm,1.6mm, etc
Each motor capacity	22kw
Drawing speed	Max.16-18m/s
Each block weight	1500KGS

1.Upper pull-out wire rack is used to feed the wire material.
2.Sheller is used to clean steel rust and oxide coating on wire surface.
3. Wire pointing & inserting machine is used to make the wire head sharp, then insert into the drawing die directly.
4.Butt welding machine is used to connect new wire coil when one is finished.
5.Trunk type wire coiling machine is used to coil the finished wire.
6.Wire coiling machine is used to coil the finished wire.
After-sale:
1.Guarantee time: One or two years since the machine was installed at buyer's factory but within 18 months from shipment date. 2.Within guarantee time, if the parts are broken, we will send you new one for free. 3.We can supply manual book, electric drawing, machine layout, installation video, etc. and our engineer can go to your factory to help you install the machine. 4.After guarantee time, we can supply technical support on line.

---
