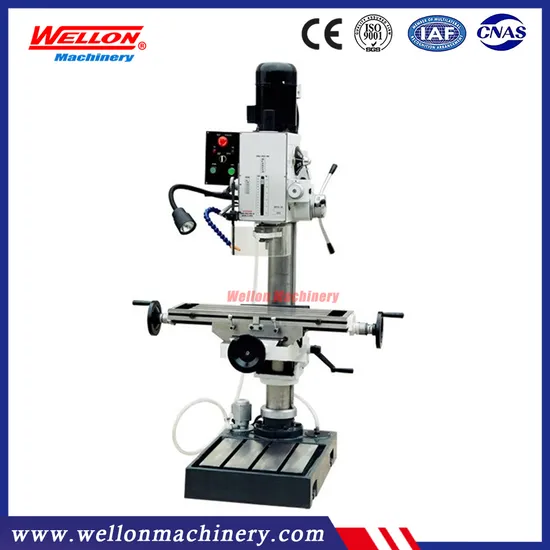

Auto Feed Vertical Drilling Milling Machine Z5032c/1 Z5040c/1 Z5045c/1 Veritical Drilling Machine

Product Description

Product Description
Product Parameters

Performence Features:
1.Drilling, milling and tapping
2.Head swivels 360 horizontally
3.Headstock and Worktable up & down perpendicularly
4.Super high column
5.Precision micro feed
6.Positive spindel lock
7.Distinct auto device for releasing tools, operate easily
8.Geared drive, lower noise
Technical parameter:

ITEM	Z5032C/1	Z5040C/1	Z5045C/1
Max.drilling capacity	32mm	40mm	45mm
Spindle taper	M.T.3 or R8	M.T.4	M.T.4
Spindle travel	130mm	130mm	130mm
Step of speed	6	6	6
Range of spindle speed 50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Step of spindle auto-feeding	6	6	6
Range of spindle auto-feeding amount	0.06-0.30mm/r	0.06-0.30mm/r	0.06-0.30mm/r
Min.distance from spindle axis to column	290mm	290mm	290mm
Max.distance from spindle to worktable	700mm	700mm	700mm
Max.distance from spindle to stand table	1125mm	1125mm	1125mm
Headstock travel	250mm	250mm	250mm
Swivel angle of headstock(horizontal)	360°	360°	360°
Worktable bracket travel	600mm	600mm	600mm
Worktable size	730×210mm	730×210mm	730×210mm
Forward and afterward travel of worktable	205mm	205mm	205mm
Left anf right travle of worktable	500mm	500mm	500mm
Vertical travel of worktable	570mm	570mm	570mm
Size of stand worktable of avaliability	417×416mm	417×416mm	417×416mm
Motor Power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Motor speed	1400 r.p.m	1400 r.p.m	1400 r.p.m
Cooling pump power	0.04KW	0.04KW	0.04KW
Net weight/Gross weight	437kg/500kg	442kg/502kg	442kg/505kg
Packing size	185×75×100cm	185×75×100cm	185×75×100cm

Standard accessories:
1 . Wedge
2 . Tie rod
3 . Washer
Optional accessories:
1 . Double Speed motor
2 . Bench vice 90mm. 125mm, 160mm
3 . Milling holder
4. Drill chuck and arbor
5. Milling chuck(8pcs)
6. Heighten column
7. Coolant system
8. Working lamp
9. Auto-Tapping system
10. Boring bar
11. Clamping kits(58pcs)
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,
Lathe Machines ,
Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
