automotive body frame straightener

Product Details

Product Description

Product Description

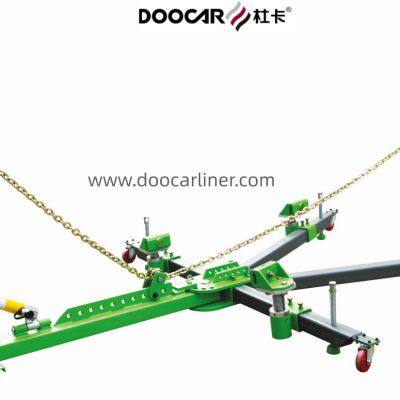

automotive body frame straightener frame machine Y-02 is one quick collision repair equipment for car cosmetic repair and dent pulling.
Key Features
1. The auto body straightener frame machine is a mobile and quick straightening system to repair dent, distorted auto frames and bodies by utilizing powerful and concentrated loads at key points.
2. The kits Made of high-quality structural steel and have a maximum pulling capacity of 10 tons.
3. Easily repair auto bodies at various damage and straighten independent twist damages.
4. 180 degree swivel pulling post
5. 130 degree swivel pulling beam
Specification

Model	Y-01	Y-02
Frame length	3000mm	3245mm
Frame Width	270mm	170mm
Frame Height	600mm	2210mm
Pulling arm swivel angle	135°	135°
Pulling post swivel angle	180°	180°
Pulling tower height	1600-2320mm	1600-2320mm
Hydraulic pressure	70Mpa	70Mpa
Ram capacity	10 Ton	10 Ton
Machine Weight	345kg	345kg

---
