Basic Info.
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Construction
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Feature
Explosion-Proof, Insulating, Spillover Valve
Certification
CE, RoHS, ISO 9001
Extandable Platform Length
900mm
Control Mode
Proportional Controls
Emergency Decline System
Yes
1 Safe Configuration
Automatic Pothole Protection
2 Safe Configuration
Tilt Angle Sensor
Safe Valves
Anti Explosion Valve, Overflow Valve, Check Valve
Onboard Diagnostic System
Yes
Surface Treatment
Plastic Spraying
Color
Yellow, Orange, Blue, Customized
Transport Package
High Quality Paper Boxes with Stretch Film.
Specification
2400*1150*1440mm 300kg capacity
Production Capacity
200/Month
Product Description

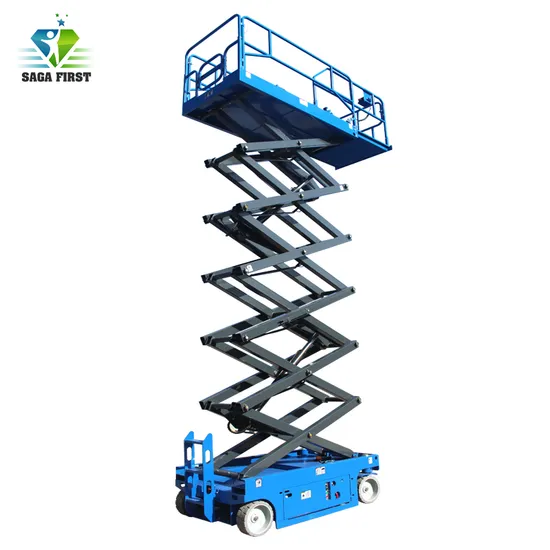

6m-12m Self Propelled Hydraulic Driven Aerial Scissor Lift
| Model No. | SP06 | SP08 | SP10 | SP12 | SP14 |
| Max Platform Height (mm) | 6000 | 8000 | 10000 | 12000 | 14000 |
| Max Working Height (mm) | 8000 | 10000 | 12000 | 14000 | 16000 |
| Lifting capacity(kg) | 300 | 300 | 300 | 300 | 300 |
| Max height-guardrail unfold (mm) | 2150 | 2275 | 2400 | 2525 | 2525 |
| Max height-guardrail folded (mm) | 1190 | 1315 | 1440 | 1565 | 1565 |
| Overall Length (mm) | 2400 | 2770 |
| Overall Width (mm) | 1150 | 1330 |
| Platform Size (mm) | 2270×1150 | 2640x1150 |
| Platform extend size (mm) | 900 | |
| Min ground clearance (mm) | 110/20 | 100/20 |
| Wheelbase (mm) | 1850 | 2230 |
| Min turn radius-inner wheel (mm) | 0 | |
| Min turn radius-outer wheel (mm) | 2100 | 2700 |
| Power source (v/kw) | 24/4.0 | 24/4.5 |
| Running speed-folding (km/h) | 4 | |
| Running speed-rising (km/h) | 0.8 | |
| Rising/falling speed (sec) | 40/50 | 70/80 |
| Battery (V/AH) | 24/200 | 24/270 | 24/300 |
| Charger (V/A) | 24/30 |
| Max climbing ability (%) | 25 |
| Max working allowable angle | 2-3° |
| Way of control | Electro-hydraulic proportion control |
| Driver | Double front-wheel |
| Hydraulic drive | Double rear-wheel |
| Wheel size-stuffed&no mark | Φ381×127 |
| Whole weight (kg) | 1900 | 2080 | 2490 | 2760 | 3400 |
Aerial Scissor Lift is driven by hydraulic principle. Hydraulic motor supply power for driving and lifting. It is different drive model with Electrical motor drive. Hydraulic self propelled scissor lift is famous for its high precision, great sensitivity, low ware and lower noise.
Compact structure can be modularized into a small space;With a new electric propulsion system, ride provides more flexibility,more environmentally friendly exhaust emissions.Automatic hole protection system, safe and reliable;The workspace of an extensible platform.
Product Description - Aerial Scissor Lift moves and lifts all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system.
Safety Precautions:
1. Explosion-proof valves 2. Spillover valve 3. Emergency decline valve
4. Check Valve 5. Adjustment Valve 6. Tilt Angle Sensor
7.Automatic pothole protection 8.Self-lock gate on platform 9.Safety Maintaince Rod
Applications - Aerial Scissor Lift is widely used in construction site, building maintenance, factory daily aerial work maintenance and various kinds of aerial work.
Certifications - Aerial Scissor Lift are approved by European certificates and meet the international standards.
Customer Visit Us & Our Factory Display:
Welcome to visit us and negotiate business.We will pick up you and arrange the accommodation hospitally.
Dealers and Wholesalers are especially welcomed and we will give special discounts.
Contact Information:
Alison (Sales Manager)
Qingdao Sinofirst Machinery Co., Ltd.
Add: Danshan Industrial Park, Chengyang, Qingdao China
URL: bropark.en.made-in-china.com
>>
