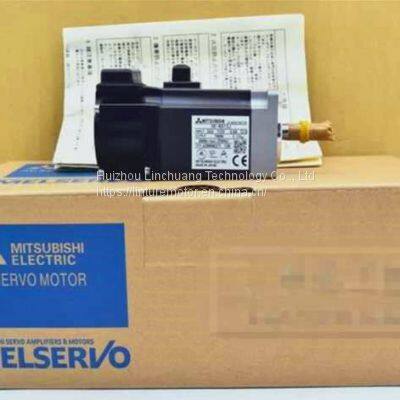

HG-KR23BJ Mitsubishi 220V Power Input Single Phase Modular Motor

Product Details

Product Description

Product Description
Rated Output::SRated Speed::Power Supply Specification:Brand:Model Item:Plan Of Original:High Light:

11.0kW	2000 RPM
200-230VAC 3-phase	Mitsubishi Servo Motor Encoder
HG-KR23BJ	Japan
ac servo motor,electric servo motor

SERVO MOTOR 200W 3K RPM 200VAC BRAKE OIL SEAL HGKR23BJ Industrial Servo Motor Mitsubishi
Product Details
SERVO MOTOR 200W 3K RPM 200VAC BRAKE OIL SEAL (HGKR23BJ)
Manufacturer: Mitsubishi
Series: HG Series
MITSUBISHI HG-KR23BJ Product information and technical parameters:
Brand: MITSUBISHI
Name: Low inertia small capacity servo motor
Model: HG-KR23BJ
Servo motor series: low inertia, small capacity.
Rated output: 0.2kw.
Rated speed: 3000r/min.
Electromagnetic brake: incidental.
Oil seal: incidental (Note 1, note 2, note 3).
Power supply: 200V.
Note 1 through HG-KR and HG-MR series 0.1kW and HG-SR series can be supported.
Note 2 with the speed reducer case, do not configure the oil seal.
Note 3 with oil seal HG-KR, HG-MR series servo motor''s appearance size standard is different.
The rated speed is 3000r/min, the maximum speed is 6000r/min.
The maximum torque of 350% of the rated torque, high torque in the field of high rotation, only to support the HG-KR series products.
Built in absolute position encoder with high resolution.
Standard high resolution absolute position encoder (4194304p/rev (22bit)).
To achieve a higher accuracy of the positioning function.
Improve the environmental performance of HG-KR, HG-MR, HG-RR, HG-UR series of products using IP65.
Type: HF-KE servo motor, low inertia, low power.
Rated output power: 0.2kw.
Rated speed: 3000r/min.
Electromagnetic brake: there.
Oil seal: have.
Encoder resolution: 131072p/r.
S100 representative: Super MR-E special motor.
KH003 special mark for Super MR-E.
Wide use.
Machining equipment and machine tool feed MITSUBISHI HG-KR23BJ.
Used for food, packaging equipment and feeding device.
For textile machinery, etc HG-KR23BJ.
Can improve the performance of equipment.
Servo amplifier terminals are used to reduce the required wiring time.
The connector is located in front of the servo amplifier, which is convenient for cable connection.
The gain adjustment can be easily carried out by the real-time automatic tuning function.
High performance and easy to operate, reduce work load MITSUBISHI HG-KR23BJ.
Enhanced system cost performance.
High performance, high precision positioning (servo motor encoder resolution: 131072).
High response.
Suppression of vibration by adaptive vibration suppression control.
Using personal computer and servo setup software to optimize tuning.
Has 2 types of interfaces:
Position control and speed control with pulse train interface MITSUBISHI HG-KR23BJ.
The analog input interface is used for speed control and torque control. Encoder adapter set; used in HF-KP/HF-MP/HF-SP/HF-JP/HC-LP/HC-UP seriesDrive: MR-H_AN series.
Rated output: 5.0KW.
Universal AC servo.
Servo driver (drives servo) also known as the "servo controller", "servo amplifier",
Is a kind of controller used to control the servo motor. Its function is similar to that of the frequency converter,
Belongs to a part of the servo system, which is mainly used in high precision positioning system.
In general, the servo motor is controlled by position, speed and torque in three ways,
To achieve high precision positioning of the transmission system, the current transmission technology is the high-end products.
Servo drive is an important part of modern motion control,
Is widely used in industrial robots and CNC machining centers and other automation equipment.
In particular, it has become a hot rresearch topic in the field of servo drives for the control of AC permanent magnet synchronous motor HG-KR23BJ.
Current, speed and position 3 closed loop control algorithm based on vector control is widely used in AC servo drive system.
The speed cllosed-loop design of the algorithm is reasonable or not, for the entire servo control system,
Especially the speed control performance plays a key role HG-KR23BJ.

Servo System Controller		Servo Amplifiers & Motors
Motion CPU, independent stand-alone controllers,		Servo amplifier/drives, used in high-precision
positioning module products		positioning servo motor control system
MELSEC iQ-R series	Servo system controller	MR-J3 series	Servo amplifiers
MELSEC-Q series	Multi-CPU precision control	HF-KP series	Servo Motor 200V
MELSEC-L series	Motion positioning module	HF-SP series	Servo Motor 400V
Electromagnetic clutches and brakes		Tension Controller
Supports high-speed, high winding/unfolding		High-speed, high winding process and expand
tension, longer material control operations.		operations tension control
ZK, ZHA series	Magnetic clutch	LE, LD series	Automatic tension control unit
ZKG, ZHY series	Magnetic brake	LM-10,LX-TD series	Tension detector
Human Machine Interface (HMI) -GOT		Low-voltage circuit breaker contactor
Good compatibility with machine, high performance		MS-N series	Motor starters
GOT, productivity and efficiency.		SD-N, S-N series	Electromagnetic contactor
GT,GS seriess	GOT HMI	NF,BH-D6,CP series	Low-voltage circuit breaker

---
