FTTH Mini Wdm Optical Node Receiver for CATV and Pon FTTH Solution

Product Description

Product Description
Fiber to the home ( FTTH ) broadband access is the ultimate development goal, the FWR-8610RW optical receiver is the target terminal product for this goal. FWR-8610W device adopts the technology of high isolation WDM in order to separate CATV and ONU signals. Furthermore, it also adopts low optical power receiving and RF-AGC control techniques, which could achieve the requirement of ≤-9dBmCATV receiving for FTTH. The optical power receiving monitoring indicator LED ( ≥-15dBm) is provided on the pane and it supports RF outputs constantly, the convenience of customers use, which is the ideal receiver equipment for FTTH.

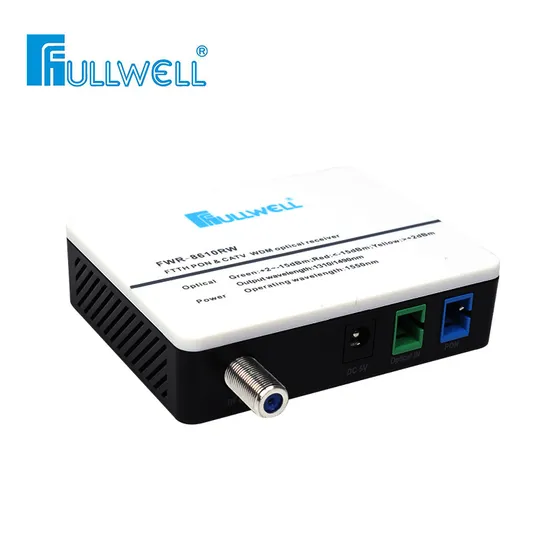

Detailed Photos

Product Parameters
Technical Index

Item		Unit	Performance Parameter
Optical characteristic	input wavelength	(nm)	1310,1490,1550
	Output wavelength	(nm)	1310,1490
	operation wavelength	(nm)	1540~1560
	channel separation	(dB)	≥40(1310/1490nm and 1550nm )
	response	(A/W)	≥0.9
	receive power range	(dB)	+3~-18
	reflection loss	(dB)	≥55
	fiber linker	/	SC/UPC
RF characteristic	Bandwidth/flatness	MHz/dB	47-1000/≤±1
	output level	dBuv	82/76/70±1/(-2~--9/-12/-15dBm)
	output level adjustment	dB	0~-18
	reflection loss	dB	≥14(75Ω characteristic impedance)
	RF output interface	/	Metric (one-way output)
	CNR/MER	dB	≥44/34(PAL-D 60CH,OMI3.8%,-9dBm)
	CTB/CSO/HUM	dB	≥65/≥60/≥60(-1dBm receive)
Another requirement	power supply/consumption	V/W	External AC155~255V→DC12,/5
	working/storage temperature	ºC	-35~50/-40~75(humidity 5~90%)
	size	mm	130×60×22

Company Profile

FAQ
Q1: Are you a factory or trading company?A: We're a professional trading company with excellent cooperative factories. Q2: Where is your company located?A: Our company is located in Hangzhou City, Zhejiang Province, China. All our clients, from home or abroad
are warmly welcome to visit us! Q3: Do your products safe enough?A: Our products meet with the certificate of CE, ISO & Rosh. Our products are made according to the
standard of the market in our clients. They're all in superior quality & competitive price. You can rest
assure that they are safe enough. Q4: How long does your warranty provide?A: We usually provide you a 2-year warranty after the date we sold under a normal usage.
Q5: What's your payment terms?
A: T/T, Western Union, Money Gram
Q6: What's your delivery time?
A: Around 8 working days after getting payment in the account ( or pre-payment)
Q7: Can you accept OEM?
A: Yes. We would accept OEM&ODM.

Welcome your inquiry and want to offer you professional help!

---
