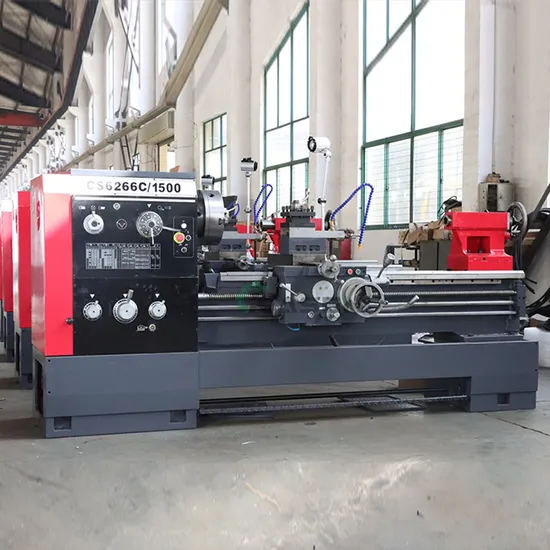

CS6266 High Precision Manual Conventional Jet Metal Lathe

Product Description

CS6266 high precision manual conventional jet metal lathe
Product Description
SPECIFICATIONS:

Model	CS6266C
Max Swing Over bed	660mm(26")
Max swing over carriage	420mm(17")
Max .Swing in gap	870mm(34")
Max. length of work piece	1000/1500/2000/3000/4000
Effective gap length	230mm
Bed width	405mm
Spindle bore	105mm D8/D11
Spindle taper of bore	113(1;20)
Spindle range of speed	36-1600 mm
Spindle number of speeds	12 steps
Threads Metric Pitches	1-14mm /22
Threads imperial pitches	28-2 TPI/25
Threads Diameter Pitches	56-4Dp/24
Threads module pitches	0.5-7mm/18
Range of feeds longitudinal	0.063-2.52mm(0.023"-0.0937")
Range of feeds cross	0.027-1.07mm(0.011"-0.0404")
External diameter of the Tailstock quill	75mm
Max Traverse of tailstock quill	150
Quill Taper	NO5.(Morse)
Max travel of compound rest	150
Max. cross slide travel	360mm
Max. size of tool shank(WXH)	25X25mm
Power the main motor	7.5KW
Packing size(LXWXH)	2800/3300/3700/4700/5700X1150X2200mm
Net weight	2500/2750/3000/3900kgs

Accessories:

Standard Accessories	Optional Accessories
3 Jaw chuck	4-jaw chuck
Face plate	Drive plate
Reduction Sleeve	Steady rest
Centers	Follow Rest
Wrenches	Thread Dial
Oil gun	Live center
operation manual	Quick change tool post
	Taper copy ruler
	4-position longitudinal automatic trip

After Sales Service
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.
1.Warranty The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual. 2.Quick Response Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most. 3.Online Technical Support
On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions. 4.Overseas Commissioning and Installation This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost


FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian

---
