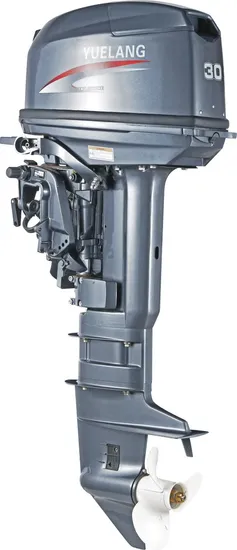

Hot Sale 2 Stroke 496cc 30HP Outboard Motor / Outboard Engine/ Boat Engine

Product Description

Model 30HP

Demension Overall Length: 843mm(33.1in) Overall Width: 399mm(15.7in) Overall Heights: 1146mm(45.1in) Overall Height L: 1273mm(50.1in)

Weight S: 53Kg(116.81 bs) L: 54.5( 120.1lbs)

Full Throttle Operating Range 4500-5500r/m

Maxi mum Output 22.1kw/30hp

Idling Speed 1100±50r/m

Displacement 496cc

BoreX Stroke 72X61mm(2.83X2.4in)

Ignition System CDI

Spark Plug NGK BR7HS-10

Spark Plug Gap 0.9-1.0mm

Control System Tiller Handle

Starting System Manual

Starting Carburation System Choke Valve

Gear Position Forward-Neutral-Reverse

Gear Ratio 2.08 (27:13)

Trim And Tilt System Manual Tilt

Recommended Fuel Unlead Gasoline

Recommended Engine Oil 2-Stroke Outboard Motor Oil

Blended Fuel Oil Ratio 50:1

Gear Oil 0.320L

Fuel Tank Opacity 24L

Torque 35N.m/2500rpm

propeller 9(7/8)X12-F

Fuel Consumption 14L/h

Packing Size 134.5*72*45CM

The outboard engine is made of high quality aluminum alloy to prevent seawater corrosion,using advanced coating technology with paint technology,combined with innovative fresh water washing system,making the daily maintenance of the engine easier.Easy installation,directly hanging on the stern plate, no stern shaft alignment and other complex links.No engine room,save valuable space in the cabin,simplify the purchase and purchase process of users and shipyard.It is beneficial to improve the navigation performance of ships,especially high-
speed boats.

---
