High-Capacity Automatic EPS Foam Crusher for Efficient Recycling

Product Description

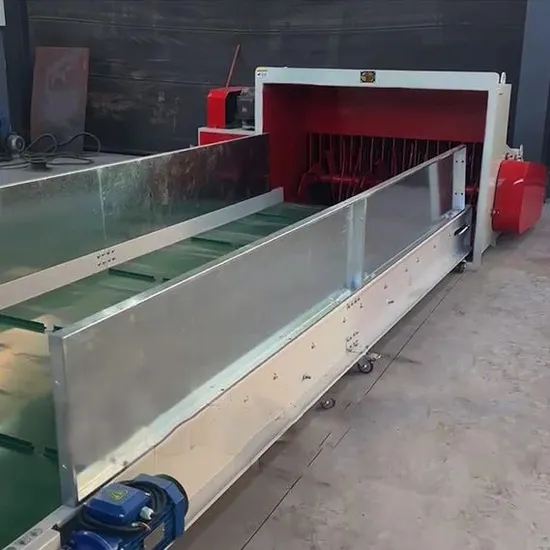

The EPS foam crusher works with a long conveying belt to convey the materials into hopper to crush them.The crushed materials will be blowed into big silo for further process.
There are two horizontal shafts installed inside hopper by left and right layout.
The conveyor is belt type and it is 4000mm length at default.
Machine Advantage
1) Continuous for big capacity
The EPS foam crusher feed by belt type conveyor,so it can continuously feed and crush,it can greatly increase the crushing capacity and users always install big silo to store the crushed pieces.
2) Smaller size output scraps As there are two crushing shafts inside of crushing machine body,they are side by side to work,the foam will be crushed twice,it can output smaller size scraps than single shaft EPS foam crusher machine.
3) Safety The belt type conveyor can be improving safety for operator when feeding materials,people are more and more pay attetion to safety in some countries.The belt can keep works away from crushing shafts which may be dangerous to workers.
Hard teeth reducer + Copper Motor
Machine Parameter

Model	Inlet Size	Motor Power	Shaft Qty	BlowerPower	Capacity
1000	1000*800	7.5kw	2	3kw	500kg/h
1200	1200*800	11 kw	2	3kw	750kg/h
1500	1500*800	15 kw	2	3kw	1000kg/h

Machine Application
FAQ
Q: why users need conveyor ?
A: for safety and capacity and easy feeding. Too many benefits are there.
Q: How many shafts inside hopper ?
A: Two shafts.
Q: how the two shafts lay out in hopper?
A: up and down.
