| US$10,000.00-11,000.00 | 1 Piece (MOQ) |

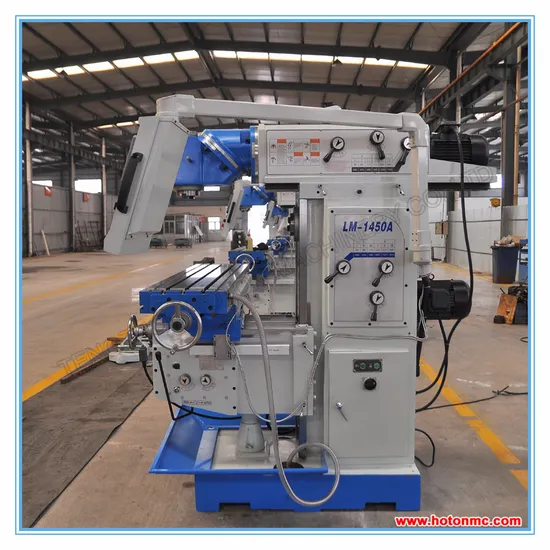

| MODEL | UNIT | LM1450A |
| Table size | mm | 1600x360 |
| T slot no./width/distance | no | 5/18/80 |
| Max. load of Table | kg | 400 |
| swivel angle of table | degree | ±45º |
| table Longitudinal travel(manual/auto) | mm | 900 |
| table Cross travel (manual/auto) | mm | 320 |
| table Vertical travel(manual/auto) | mm | 400 |
| Swivel angle of milling head | 360º | |
| Spindle taper | ISO50 | |
| spindle speed /step -- Vertical | rpm | 60-1800 |
| --Horizontal | rpm | 60-1700 |
| Distance from vertical spindle axis to column surface | mm | 160-800 |
| Distance from vertical spindle nose to table surface | mm | 200-600 |
| Distance from horizontal spindle axis to table surface | mm | 0-400 |
| Distance from horizontal spindle axis to ram bottom | mm | 200 |
| ram travel | mm | 600 |
| Longitudinal/cross feed | mm / min | 30~630(X,Y) |
| Vertical feed /step | mm/min | 30~630(Z) |
| Longitudinal/cross rapid speed | mm / min | 2000 (XY) |
| Rapid Traverse vertical | mm/min | 2000 (Z) |
| main motor | kw | 4 |
| (X/Y/Z) feed motor | kw | 1.5 |
| coolant motor | kw | 90W |
| overall dimension | cm | 207x202.5x220 |
| Machine weight | kg | 2650 |
