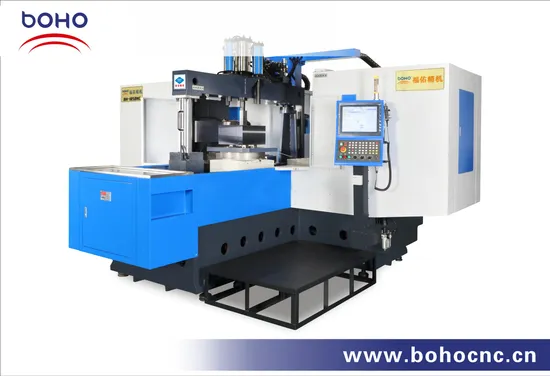

Boho CNC Double Side Milling Machine Bh-1050nc / Automatic Horizontal Milling Machine/ Tool Steel and Mould Processing First Choice

Product Description

Product Description

Main Function:
CNC system once setting and automatic guides where work-piece loading place, automatic measurement, four- sides process, which can reduce working strength of operator and increase Productivity, maintain high accuracy for dimension, squareness and parallelism.
The best choice of surface milling machine for 100-1050mm square workpieces, high quality. By using LNC system, It has the advantages of high industrial grade, stability and efficiency. The graphical conversational operation mode greatly reduces the threshold for operators to get started.
Detailed Photos

Specifications:

Items		unit	BH-1050NC
Capability	Control Axis		4
	One time cutting capacity	mm	2*3
	Work Range	mm	100-1050
Worktable	Worktable Size	mm	700*700
	Max Loading Weight	KG	2500
Spindle	Spindle Speed	rpm	500
	Spindle Power	KW	15x1500spins
	Axis diameter	mm	47.625
	Cutter Diameter	mm	300
X/Y/Z Axis	X/Y/Z Servo motor	KW	4.5/3/3
	X/Y/Z Max rapid feed speed	M/min	7/7/7
	X/Y/Z Max Cutting feed Rate	Mm/min	5000/5000/5000
	Accuracy	mm/200mm	0.02
Power Source	Power	/	AC380V/220
cover area	length×width	m	5.6*5.8
Weight	Machine weight	KG	13000

You can choose LNC, MITSUBISHI or FANUC Controller as you like.
The machine can be customized according to your needs.
FAQ

1. What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company.
3. How can I choose the most suitable machines?
A: Please let us know your machining demand or machine size,we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you.
4. Are you a manufacture or trading company?
A: we are innovative interprise with rich experience. Warmly welcome you to visit our factory.
The maintenance fee includes:1.Technician travel time and costs2.Maintenance and calibration work3.Small items required to perform assigned maintenance work4.Calibration and provision of appropriate maintenance and test reports to demonstrate that calibration results comply with national standards
BOHO Machinery double-sided milling can be carried out on any of the following materials:
Steel Stainless steel Tool steels Hot work die steel Cold work tool steel Plastic mold steel Raw metal Aluminum Ferrous or non-ferrous metals Cast iron Mold plate other four-sided square metal

---
