Weihai Reliable 1400t Short Cycle Pre Lam Press Machinery From China

Product Description

Product Description

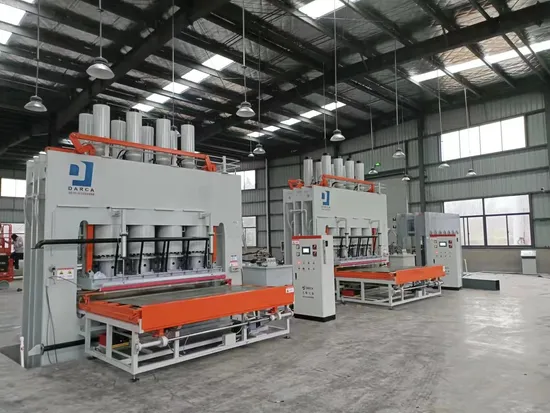

short cycle lamination press machine for furniture panels
HSYJ-1400T 4×8 SEMI-FAST SPEED PRE LAM

	ITEM	SPECIFICATION
1	DESIGN PRESSURE	14000KN
2	Frame thickness	60MMX4
3	LOADING	8' SIDE
5	MAIN POWER	~22KW SERVO MOTOR 40% POWER SAVING +63L/m PUMP
6	HOT PLATE SIZE	UP:2600×1400mm×150
		DOWN:2600×1400mm×110
7	LAYER DISTANCE	200mm
8	MAIN CYLINDER	Φ 300×220m	8	PCS
9	LIFTING CYLINDER	Φ 80×220mm	4	PCS
10	HYDRAULIC PRESSURE	≤25Mpa
11	HOT PLATE TEMP.	≤210ºC
12	UNLOADING	MANUAL PUSHING
13	BELT LOADING SPEED	10~120m/min (ADJUSTABLE) LOADING TROLLEY WITH SERVO MOTOR
14	CONTROL	PLC+HMI
15	CLOSING+PRESSURE INCREASING TIME	WITHIN 5 SECONDS
16	2ND CIRCUIT	2.2KW X 2
17	COOLING SYSTEM	COOLING PAD
18	OVERALL SIZE	3900*1160*3900MM
19	TOTAL WEIGHT	42000KGS

HSYJ-1600 T 4×8 FAST SPEED PRE LAM

	ITEM	SPECIFICATION
1	DESIGN PRESSURE	16000KN
2	LAMINATION SIDES	2
3	STRUCTURE	MAIN FRAME THICKNESS: 60MM WELDED FRAME
4	MAIN HYDRAULIC POWER	~22KW SERVO MOTOR BRAND: YUNSHENG
5	HOT PLATE SIZE	UP:2600×1400mm×150
		DOWN:2600×1400mm×110
6	LAYER DISTANCE	220mm
7	MAIN CYLINDER	Φ 320×220mx8
8	LIFTING CYLINDER	Φ 80×220mmX2
9	HYDRAULIC PRESSURE	≤25Mpa INDIVIDUAL HYDRAULIC PREFILL VALVE CONTROL
10	HOT PLATE TEMP.	≤210ºC
11	LOADING	10~120m/min SERVO MOTOR BELT TROLLEY 3KW
12	UNLOADING	MANUAL
13	CONTROL	PLC+HMI
14	2ND CIRCUIT FOR TEMPERATURE	3.3KW X 2
15	OVERALL SIZE	3900*1160*3800MM
16	TOTAL WEIGHT	41000KGS

Detailed Photos
Packaging & Shipping

Company Profile
Weihai Reliable Imp&Exp Corp., Ltd is located in Linyi city, Shandong province, China, where is famous for the wooden panels and woodworking machinery. Our company was established in 2004, and have been engaged in the manufacturing and supply of woodworking machines since then, Including plywood production machinery, Particle Board production machinery (Linyi Factory), short cycle lamination machinery (Wuxi Factory) and other relevant machinery, and our customers are coming from all round the world, like India, Vietnam, Indonesia, Bangladesh, Sri Lanka, Saudi Arabia, Malaysia, Iran etc.
Our company has more than 10 experienced mechanical and electrical engineers, and they mainly focus on the research and development of the woodworking machinery. Meanwhile our factories are fully equipped with advanced lathe machine, grinding machine, planner and welder, which together contribute to the high precision machinery. Also we have a very strong and experience after-sale team, they are doing all commissioning and maintenance work for our customers.
Our company culture is "Quality is our for-ever goal, after-sale Service is our priority, win-win with customers", and we would like to cooperate with the friends from all around the world.

FAQ
Q1: What's your factory MOQ and best price?
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price term, we will try our best to meet with your demands.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail / skype/ phone / whatsapp /trademanager online service.
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.

---
