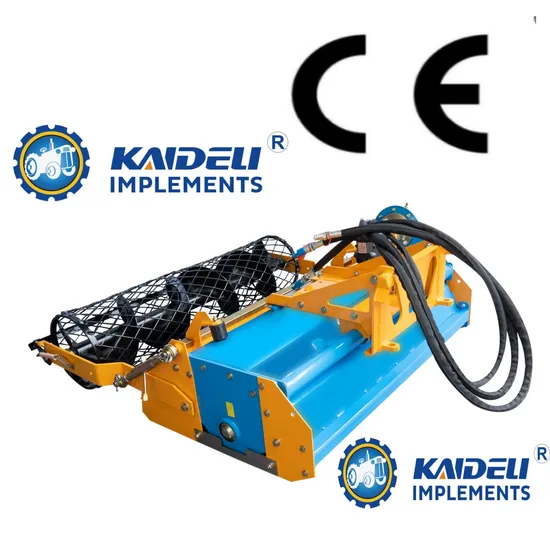

Rotary Tiller with Stone Burier 120mm Max Tilling Depth

Product Description

Product Description
Uses: 1. The SBH series stone burier machine is driven by a hydraulic motor to drive the transmission shaft to drive the driving sprocket to rotate, and then the driven sprocket is driven by the chain drive to make the cutter shaft rotate tillage.
2. The cutter shaft works in the opposite direction.
3. When it is inserted into the ground, the tail roller is covered with soil and buried.
4. In case of large stones, it needs to be slowly pushed away by the flat soil teeth, and then picked out separately.
5. This series of stone burier machines can be used in various occasions, such as fields, fruit trees, sports fields, parks, etc.
Product Parameters

MODEL	SB85H	SB105H	SB125H	SB145H	SB165H
LxWxH(mm)	1100x1400x1000	1300x1400x1000	1500x1400x1000	1700x1400x1000	1900x1400x1000
Working Width(mm)	800	1000	1200	1400	1600
Maximum Tilling Depth(mm)	120
NO. of Blade	8+8	10+10	12+12	14+14	16+16
Pump Flow L/min	35-45	35-45	35-45	35-45	45-60
Pressure MPa	20
Transmission Type	Hydraulic + Chain
Type of Linkage	Front Quick Change Rack
Weight(kg)	245	260	275	290	305

Detailed Photos


Other Recommendation
20-45HP Rotary Tiller with Stone Burier SB Series: https://czkaideli.en.made-in-china.com/product/xwVtOXCblHfo/China-50-120HP-Tractor-Hydraulic-Flail-Mower-Agf.html
