High Performanceplastic Crusher for WPC Panel PE PP Products

Product Description

Product Description

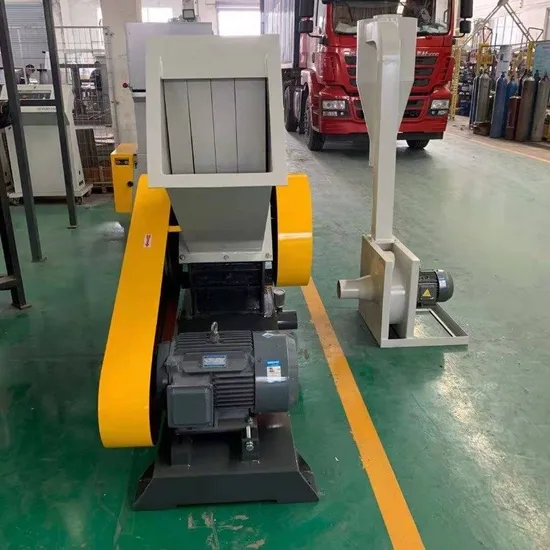

SWP series crusher is the first reduce-size machinery during the recycling and reuse of PVC defectives. PVC chips with an average size of 10mm are produced by the crusher. Those chips are then processed by pulverizer to get the regrinds which can be reused as formula composition.
It is suitable for crushing various plastic profiles and pipes. It does not need to be cut into sections for long plastic pipes, and can be continuously fed at one time. Such as plastic doors, plastic pipes, plastic panels, window frames, wire ducts, sheets, etc.
SWP series crushers can realize automatic feeding, and the whole pipe is put into the machine to be crushed by itself; it is equipped with a fan conveying crushing material device, and the crushed granular material is extracted from the machine by the suction fan, which is convenient for bagging and warehousing; device, and the large SWP model is equipped with an independent electric box control cabinet. The operation and maintenance are extremely convenient, and it is an ideal model for crushing various pipes and profiles.
Kenneth SWP-1300 Crusher is a custom crusher for SPC flooring tile defectives with an inlet dimension(L*W) of 1300*450mm.
The wide inlet can easily take the SPC defectives from extrusion line with a width of 1220mm(4ft) directly.
The powerful crushing mechanism composed of an rotor with 3 sets of tooth blades arranged equilateral triangularly and 2 sets of opposed stationary blades. Crushing capacity is up to 1300~1500kg/hr.
Blades are made of (9GrSi) high-quality alloy steel or SKD11, compared with ordinary materials, it has stronger wear resistance and impact resistance. And after long-term use, the blade can be reground and used repeatedly, which greatly reduces the cost.

Product Parameters

Model	SWP-160	SWP-200	SWP-400	SWP-500	SWP-600	SWP-800	SWP-1300
Motor Power	5.5kW	4kW	15kW	18.5kW	35kW	45kW	90kW
Inlet Dimension(L*W)	350*110mm	240*350mm	400*300mm	500*400mm	820*600mm	900*800mm	1300*450mm
Rotary Knife Diameter	160mm	200mm	400mm	500mm	600mm	800mm	500mm
Rotary Knife Qty	8pcs	3pcs	5pcs	5pcs	6pcs	6pcs	39pcs
Stationary Knife Qty	2pcs	2pcs	2pcs	2pcs	2pcs	2pcs	6pcs
Mesh Size	8mm	8mm	10mm	10mm	10mm	12mm	12mm
Crushing Capacity	100-200kg/hr	50-110kg/hr	400kg/hr	500kg/hr	700kg/hr	800kg/hr	1300kg/hr
Weight	450kg	300kg	1500kg	2000kg	2800kg	3500kg	4500kg

---
