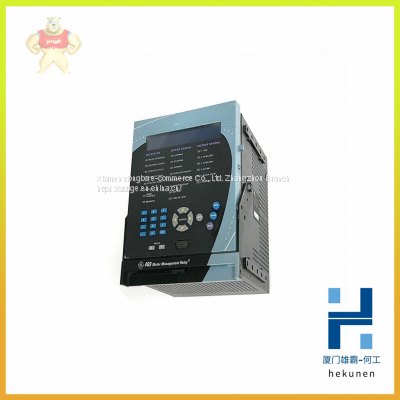

369-HI-R-M-0-0-0-E GE Multilin369 motor management relay has high control power

Product Details

Product Description

Product Description
369-HI-R-M-0-0-0-E GE Multilin369 motor management relay has high control power
369-HI-R-M-0-0-0-E GE Multilin369 motor management relay has high control power
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
OVERLOAD ALARM
Pickup Level: 1.01 to 1.50 × FLA in steps of 0.01
Pickup Accuracy: as per phase current inputs
Dropout Level: 96 to 98% of pickup
Time Delay: 0.1 to 60.0 s in steps of 0.1
Timing Accuracy: ±100 ms or ±2% of total trip time
50 SHORT CIRCUIT
Pickup Level: 2.0 to 20.0 × CT in steps of 0.1
Pickup Accuracy: as per phase current inputs
Dropout Level: 96 to 98% of pickup
Time Delay: 0 to 255.00 s in steps of 0.01 s
Backup Delay: 0.10 to 255.00 s in steps of 0.01 s
Timing Accuracy: +50 ms for delays <50 ms
±100 ms or ±0.5% of total trip time
MECHANICAL JAM
Pickup Level: 1.01 to 6.00 × FLA in steps of 0.01
Pickup Accuracy: as per phase current inputs
Dropout Level: 96 to 98% of pickup
Time Delay: 0.5 to 125.0 s in steps of 0.5
Timing Accuracy: ±250 ms or ±0.5% of total trip time
37 UNDERCURRENT
Pickup Level: 0.10 to 0.99 × FLA in steps of 0.01
Pickup Accuracy: as per phase current inputs
Dropout Level: 102 to 104% of pickup
Time Delay: 1 to 255 s in steps of 1
Start Delay: 0 to 15000 s in steps of 1
Timing Accuracy: ±500 ms or ±0.5% of total time
46 UNBALANCE
Pickup Level: 4 to 30% in steps of 1
Pickup Accuracy: ±2%
Dropout Level: 1 to 2% below pickup
Time Delay: 1 to 255 s in steps of 1
Start Delay: 0 to 5000 s in steps of 1
Timing Accuracy: ±500 ms or ±0.5% of total time
50G/51G 50N/51N GROUND FAULT
Pickup Level: 0.10 to 1.00 × CT for 1 A/5 A CT
0.25 to 25.00 A for 50:0.025 CT
Pickup Accuracy: as per ground current inputs
Dropout Level: 96 to 98% of pickup
Time Delay: 0 to 255.00 s in steps of 0.01 s
Backup Delay: 0.01 to 255.00 s in steps of 0.01 s
Timing Accuracy: +50 ms for delays <50 ms
±100 ms or ±0.5% of total trip time
ACCELERATION TRIP
Pickup Level: motor start condition
Dropout Level: motor run, trip or stop condition
Time Delay: 1.0 to 250.0 s in steps of 0.1
Timing Accuracy: ±100 ms or ±0.5% of total time
38/49 RTD and RRTD PROTECTION
Pickup Level: 1 to 200°C or 34 to 392°F
Pickup Accuracy: ±2°C or ±4°F
Dropout Level: 96 to 98% of pickup above 80°C
Time Delay: <5 s

---
