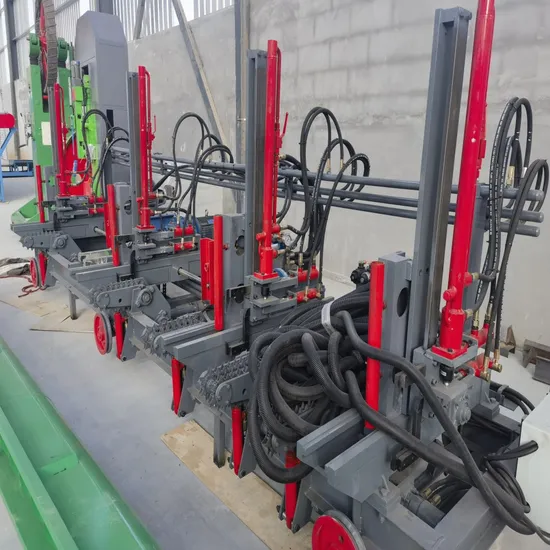

Log Cutting Vertical Bandsaw with Automatic Feeding Pneumatic Wood Carriage

Product Description

Product Parameters
WS36 Vertical Band Sawmill With
Manual/Electric/CNC/Pneumatic/Hydraulic Log Carriage
Popular and highly trusted in Ecuador,Fiji,Honduras,Indonesia,Malaysia,Myanmar,Nigeria,Romania,Tanzania,USA,
Ghana,Mauritius,Mexico,Papua New Guinea,Thailand,Zambia,Zimbabwe,

Wheel Diameter (MM)	900
Max Sawing Diameter	700
Saw Blade (MM)	6400*125*1.05
Main Motor Power( KW)	18.5
Log Carriage	Manual	Electric	Manual	Electric
Carriage Length MM	3000		5000
Max Sawing Length MM	4000		6000
Clamping	Manual *3		Manual*4
Walking	Manual	Electric	Manual	Electric
Sizing	Manual	Electric	Manual	Electric

Options	Specification
CNC Log Carriage	Touch Screen Sizing,Electric Clamping,VFD Walking
Pneumatic Log Carriage	Pneumatic Clamping,Pneumatic rotation,touch screen sizing,VFD walking
Hydraulic Log Carriage	hydraulic Clamping,Hydraulic rotation,touch screen sizing,vfd walking
Log Loading Deck	5000*2000MM,5000*4000MM
Roller Conveyor	5000*800MM,8000*800MM
Chain Conveyor	1800*200MM,4000*2000MM

Related Machines
WS40 Vertical Wood Band Sawmill With Electric/CNC/Pneumatic/Hydraulic Log Carriage

Saw Wheel Diameter	1000(MM)
Max Sawing Diameter	800(MM)
Saw Blade	6850*125*1.05(MM)
Saw Clip & Wheel Up & Down	Electric
Main Motor Power( KW)	22
Log Carriage	Electric		CNC	Electric	CNC
Carriage Length	3000MM			5000MM
Max Sawing Wood Length	4000 MM			6000MM
Clamping	Manual*3	Electric*3		Manual*4	Electric*4
Walking	Electric	VFD		Electric	VFD
Sizing	Electric	Touch Screen		Electric	Touch Screen

WS42 Vertical Wood Band Sawmill With Electric/CNC/Pneumatic/Hydraulic Log Carriage

Saw Wheel Diameter	1070
Max Sawing Diameter	1000
Saw Blade	7400*150*1.05
Saw Clip & Wheel Up & Down	Electric
Main Motor Power( KW)	30
Log Carriage	Electric		CNC	Electric	CNC
Carriage Length	3000MM			5000MM
Max Sawing Wood Length	4000 MM			6000MM
Clamping	Manual*3	Electric*3		Manual*4	Electric*4
Walking	Electric	VFD		Electric	VFD
Sizing	Electric	Touch Screen		Electric	Touch Screen

WS48 Vertical Wood Band Sawmill With Electric/CNC/Pneumatic/Hydraulic Log Carriage

Saw Wheel Diameter	1250MM
Max Sawing Diameter	1200MM
Saw Blade	8600*150
Saw Clip & Wheel Up & Down	Electric
Main Motor Power( KW)	37KW
CNC Log Carriage	3000MM	5000MM
Max Sawing Wood Length	4000MM	6000MM
Clamping	Electric*3	Electric*4
Walking	Frequency	Frequency
Sizing	Touch Screen	Touch Screen

WS60 Vertical Wood Band Sawmill With Electric/CNC/Pneumatic/Hydraulic Log Carriage

Saw Wheel Diameter	1250MM
Max Sawing Diameter	1500MM
Saw Blade	9200*150
Saw Clip & Wheel Up & Down	Electric
Main Motor Power( KW)	45KW
CNC Log Carriage	3000MM	5000MM
Max Sawing Wood Length	4000MM	6000MM
Clamping	Electric*3	Electric*4
Walking	Frequency	Frequency
Sizing	Touch Screen	Touch Screen

Company Profile
Specialize in research & development, production, sales of sawmills and the relevant fittings SINCE 1988
We have serves 11,000 enterprises and our products have been exported to over 60 countries in the world.
Our Band Sawmill machines including:
Hydraulic Heavy Duty Horizontal Sawmill
Hydraulic Portable Horizontal Sawmill
Multiple Heads Horizontal Resaw Band Saws
Heavy Duty Horizontal Sawmill
Portable Horizontal Sawmill
Thin Cutting Horizontal Resaw
Mini Portable Sawmill
Twin Vertical Band Sawmill
Vertical Band Sawmill
Log Carriage (Manual,Electric,Pneumatic,Hydraulic)
Band Saw Blade
Band Saw Blade (Sharpener,Butt Welder,Roller)
Brazing Machine (Manual/Automatic Stellite/Tungsten)
Blade Grinding Machine(Manual/Automatic ,Side/Angle)
Sawmill & Kilns & Pallet & Biomass & Forestry & Recycling
Sincerely welcome worldwide distributors to join us!

---
