Support Customization Factory Sale Gmc/Gmb1213 Big Size Axis Gantry CNC Machining Center

Product Description

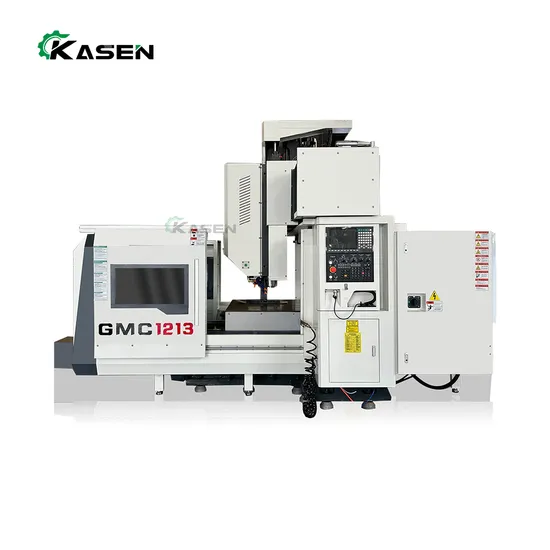

Big Size 5 Axis Gantry Cnc GMC1213 Gantry Type Cnc Milling Machin
Product Description
Feature:This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the roughmachining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety ofprocessStandard Accessories: Optional Accessories:Armless type tool magazine System:FANUC,Siemens,GSK etc.Automatic lubrication system Arm type ATCCooling system 4axis or 5axisHeat Exchanger Automatic chip conveyorPneumatic system Spindle center coolantFull Cover machine enclosure Higher speed of SpindleAir system/ Air gun Air conditioner Main technical specifications:

Specifications		Unit	GMC1213
Work table	Table size	mm	1400*1000
	Max.table load	Kg	1500
	T slot	mm	7-22*130
Processing capacity	X Axis travel	mm	1350
	Y Axis travel	mm	1200
	Z Axis travel	mm	600
	Gantry width	mm	1200
	Spindle nose to table surface	mm	160-760
Spindle	Spindle taper		BT40
	Max.spindle speed	rpm	10-8000
Feed	Cutting feed speed	m/min	1-10
	X axis rapid traverse	m/min	18
	Y axis rapid traverse	m/min	18
	Z axis rapid traverse	m/min	12
Motor	X axis servo motor torque	Nm	18
	Y axis servo motor torque	Nm	18
	Z axis servo motor torque	Nm	28
	Main motor power	Kw	11-15
Guide rail, lead screw	X/Y axis guide rail		45mm roller type linear rail
	Z axis guide rail		4-45mm roller type linear rail
	X/Y/Z Ball lead screw		4011
Machine dimension		mm	3100*2700*4200
Machine weight		kg	7800

Company Profile

After Sales Service
SERVICE SUPPORT
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.

2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.

3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.

4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
