Vertical Pillar Drill Press for Steel

US$100.00-500.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZT-19GF
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Chuck Size
16mm
Spindle Travel
100 mm
Table Size
350 mm
Motor
550 W
Overall Height
1100 mm
Spindle Taper
Mt2
Table Travel
406mm
Spindle Speeds Series
250-3200
Column Diameter
80 mm
Max Drilling Diameter
19mm
Transport Package
785× 460× 280 mm
Specification
53-210 kg
Trademark
tokmc
Origin
China
HS Code
84592900
Production Capacity
1000 Sets /Year

Product Description

drilling machine factory
Feature:
1- small in size, save space
2-The operations are on the spindle box,It is flexible and convenient to change speed, feed safe
3-The main parts are molding casting with high-grade material. Aging treatment, High precision machine processing.
4-Hardened and quenching on slideway

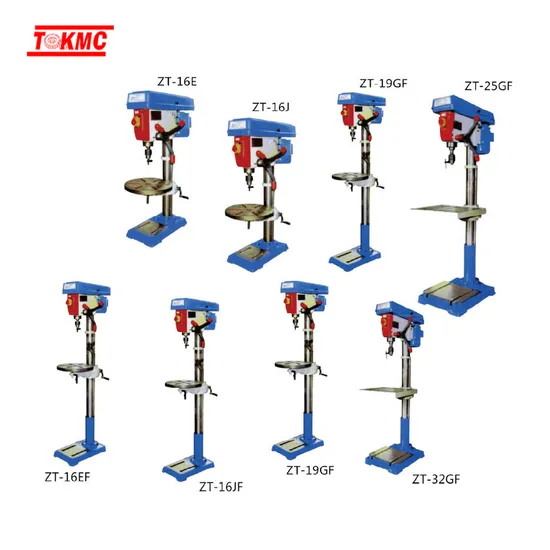

Item ZT-16E ZT16J ZT19GF ZT-25GF ZT-16EF
Max.drilling dia.mm 16 16 19 25 16
Chuck size mm 16 16 16 16 16
Table travel mm 365 365 406 500 830
Table size mm φ290 φ312 φ350 360×360 φ290
Spindle travel mm 80 85 100 125 80
Distance spindle axis to column 182 182 199 225 182
Spindle taper MT2 MT2 MT2 MT3 MT2
Column diameter mm 72 72 80 92 72
Spindle speeds series r.p.m 300-3100 300-3100 250-3200 160-2060 300-3190
Spindle steps 12 12 12 9 12
Motor W 370 370 550 750 370
Overall height mm 965 992 1100 1475 1545
N.W./G.W. KG 53/57 65/69 95/105 158/185 58/62
Packing case dimensions mm 785×460×280 785×460×280 1050×600×300 1430×430×570 758×460×280
1450×150×150
