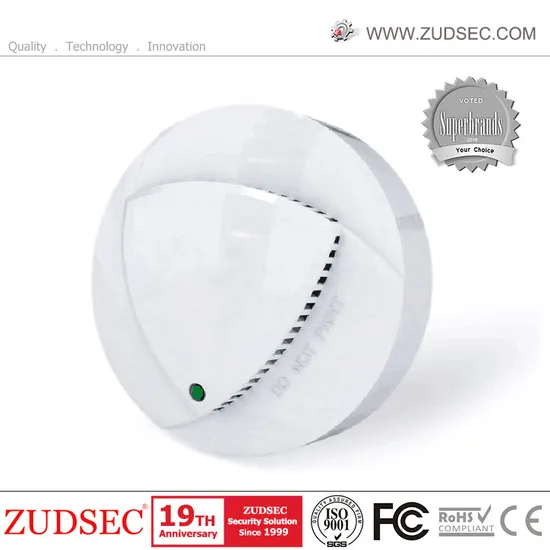

Photoelectric Smoke & Heat Sensor with Relay Output & LED Flash

US$6.90-8.90 100 Pieces (MOQ)

Basic Info.

Model NO.

ZDD-309SH

Anti-Theft Alarm System Type

Smoke Alarms

Anti-Theft Alarm System-Wide

Space Security Alarm Detector

Anti-Theft Alarm System Distance

Common Detectors

Types of Smoke Detectors

Photoelectric Smoke Style

Infrared Sensor Probe Type

Inclination Sensor

Infrared Sensor Installation

Ceiling

Combustible Gas Detector Model

NA-300

Item

Smoke & Heat Detector

Operating Voltage

DC9-35V

Alarm Output

Relay Output & LED Flash

Alarm Temperature

57oc

Installation Method

Ceiling Mounted

Dimension Size

10 Cm * 4.8cm

Standby Current

50ua

Alarm Current

22mA@12V, 40mA@24V

Transport Package

Color Box

Specification

CE, RoHS

Trademark

ZUDSEC

Origin

Shenzhen, China

HS Code

853110

Production Capacity

1000000PCS/Year

Product Description

Product Description
4-Wire Photoelectric Smoke & Heat Sensor
Heat Detector-4 Wire: ZUDSEC smoke detector series provides early warning of developing fire. Modern stylish design, Low Power consumption,Non-polar input power supply, LED visible in 360 degrees direction, Anti-RFI & anti- EMI, Twist-off mounting for fast installation. Designed to comply with EN-54, UL521 standards.
Features - Modern stylish design, Low Power consumption
- LED visible in 360 degrees direction
- Anti-RFI & anti- EMI
- Twist-off mounting for fast installation
- Designed to comply with EN-54, UL521 standards

Product Parameters

Specifications

Operating Voltage: DC9-35V;
Standby Current: 50uA; Alarm Current: 22mA@12V, 40mA@24V
Alarm Output: Relay output & LED Flash
Alarm Temperature: 57ºC
Installation Method: Ceiling Mounted
Operating Temperature: -10°C ~ +70°C; Operating Humidity: <=90%RH
Dimension Size: Φ10 cm * 4.8cm; Packing box: 11.5*11*6cm; Weight: 0.2kg/pc
