Product Description
Product Description

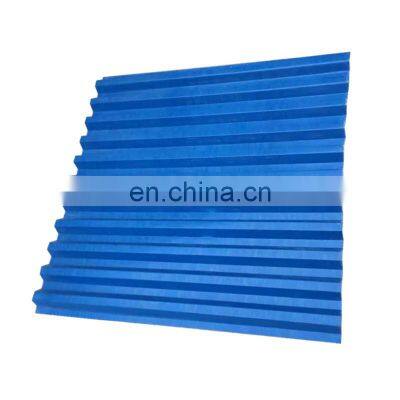

Product Overview1000mm 1000mm 866mm Inclined Lamella Clarifier Tube Settler Media ModulesTube settlers, also called lamella clarifiers, are used to remove solids in the waste water treatment.Tube settlers use multiple tubular channels sloped at an angle of 60° and adjacent to each other, which combine to form an increased effective settling area. This provides for a particle settling depth that is significantly less than the settling depth of a conventional clarifier,reducing settling times.Tube settlers capture the settleable fine floc that escapes the clarification zone beneath the tube settlers and allows the larger floc to travel to the tank bottom in a more settleable form. The tube settler's channel collects solids into a compact mass which promotes the solids to slide down the tube channel.1000mm 1000mm 866mm Inclined Lamella Clarifier Tube Settler Media ModulesWe can supply many different size PP tube settler.Any interest about them, I will be happy to give offer to you.ApertureThicknessQuantity (pc/m2)Weight (kg/m2)Surface Area25mm0.4mm623013935mm0.45mm623513935mm0.4mm422210980mm0.45mm422510950.5mm422810950mm0.4mm30178770.45mm3017.58780.5mm3019870.6mm30228780mm0.7mm2019.5500.8mm202250Our tube settler:It is resistant to impacts.Durable to sunlightIt does not hold germs and dust.It is long-lasting.It can work up to 50-60 °C (PVC-PP) without deforming.It is produced in black & blue and reduced transparent colors as standard.( Pvc is Black and blue, PP is Transluent) Other colors are optional.PRODUCT SPECIFICATIONS1000mm 1000mm 866mm Inclined Lamella Clarifier Tube Settler Media Modules1. Ideal in dirty water applications.2. Far more forgiving of poor water distribution caused by clogged or missing nozzles.3. Water easily redistributes itself.4. Ideal in dusty or wooded environments.5. Easy maintenance.6. Long service life.7. High-temperature designs available.8. Designs available for heavy ice loads.Production ProcessTube settler Production:The tube settler produced by using EPR copolymer plastic as the material, it was hot drawn into slope tube by a infrared thermal machine,and then using patented technology and high frequency to weld into a whole product.Produdct ApplicationApplication and Usage of Tube SettlerInclined tube settler is mainly used for a variety of precipitation and sand removing. Our Tube settler & Lamella models are being used effectively by the State-owned water treatment plants, Municipalities, Domestic and Industrial water and wastewater treatment plants, sedimentation basins and oil separation units. By producing and selling both domestically and internationally, we proudly stand at the leading position when it comes lamella.SIMILAR PRODUCTSFAQWhy Choose Us?1. Highest qualityWe are the manufacture who adopts import raw materials. It is amazing, and with cheap price and guaranteed quality.2. Most competitive priceWe can adjustment the price according to your market demand’s changes,and also can launch a series of promotional activities in a bad economic environment.3. ProfessionalWe are special in producing and sells, as development, methods, and handling.4. Best serviceAnswering emails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.
>>
