| US$540.00-595.00 | 1 Piece (MOQ) |

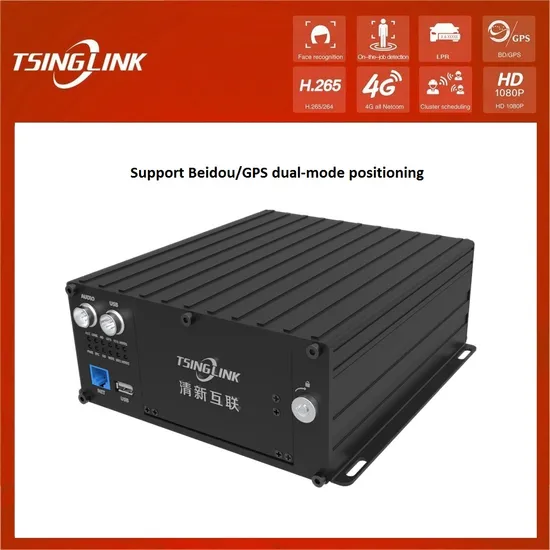

TSM610-F Vehicle-mounted Hard Disk Video Recorder is a mobile video surveillance product for HD/UHD surveillance needs. The product adopts high-speed processor and embedded operating system, combined with H.264/H.265 video compression/decompression technology, 5G/4G/3G network, AI, Beidou/GPS positioning, WiFi and other technologies, it can realize HD resolution video recording , record vehicle driving information and upload remote video, with the central software, it can realize remote video monitoring, voice intercom, vehicle intelligent dispatch management, alarm linkage, intelligent data analysis (face detection, face recognition, license plate recognition, etc.). The product has the characteristics of strong earthquake resistance, stable transmission, flexible and convenient installation, comprehensive functions, and high reliability, which can be widely used in public security, traffic policeman, procuratorate, court, national security, armed policeman, border defense, customs, road administration, escort, drug control and other occasions. Key features Adapt to all network, support 5G, 4G, 3G, ad hoc network transmission Support 9 channel 1080P network video input Optional 4K network HD video input Support 3 channel face detection or license plate recognition or face recognition Support H.264, H.265 video compression algorithm Support dual stream: one channel HD local storage, one channel bandwidth adaptive image transmission Support two-way microphone intercom Built-in WiFi, 5.8G high-speed bandwidth Dual TF card storage, single card supports up to 1T Support dual hard disk storage, single hard disk up to 2T (2.5-inch 7mm hard disk) Support Beidou/GPS dual-mode positioning Support RS232, RS485, alarm and switch output Industry application Public security, traffic policeman, procuratorate, court, national security, armed policeman, border defense, customs, road administration, escort, drug control and other occasions. |
| Item | TSM610-F |
| Operating system | Linux |
| Access platform | iCVS2.0, GB/T 28181, GA/T 1400 |
| Real Time Clock | Support |
| Video Input | 9-channel network HD aviation plug |
| Video Access Protocol | Onvif, iCAP, RTSP |
| Video Output | 1 channel HDMI interface |
| Resolution | Support resolution: 9×1080P, 9×720P, etc. |
| Compression standard | H.264/H.265 |
| Code stream | Support dual stream, one channel adaptive transmission, one channel local storage |
| Bit rate | 16Kbps~10M |
| Frame rate | 1~25fps |
| Audio Input | Support 9 channel input, support external wired microphones, Bluetooth handheld microphones |
| Audio Output | Support 9 channel output, support external wired microphones, Bluetooth handheld microphones |
| Compression standard | G711A/G711U/AAC |
| 5G/4G | 5G NSA & SA, backward compatible with 4G; 4G version supports 4G dual card |
| Ethernet | 10/100M adaptive full duplex |
| WiFi | 802.11a/b/g/n, 2.4G, 5.8G |
| Ad-hoc network | Support |
| TF card storage | Dual TF card storage, single card supports up to 1T |
| Hard disk | Dual hard disk, single hard drive supports up to 2T |
| Positioning | Support Beidou/GPS dual-mode positioning |
| Alarm | 1 channel alarm input, 1 channel switch alarm output |
| Serial port | Support 1 channel RS232 and 1 channel RS485 transparent serial port data acquisition and control |
| Intelligent application | Support 3 channel face detection or face recognition or license plate recognition |
| Power | DC 8~36V |
| Temperature | -20~70ºC |
| Humidity | ≤95% |
| Size | 116.02mm×41.57mm×147mm |
1. Are you a factory or a trading company? We are professional factory with nearly two decades experience, with 4000 square meters workshop and over 150 employees. We have the independent right to operate import and export to provide service to overseas customers directly, so there's no need to pay additional commission to agency and we could skip some steps to save more time. We have our own research and development of terminal and platform software, customization and secondary development is welcomed. Tsinglink has independent brand and provide OEM, ODM production as well. 2. What is your pricing strategy? Discount will be provided upon large quantity. For overseas markets, we will offer competitive price to support long-standing customers and distributors. 3. What is your minimum order quantity? Our minimum order quantity is 10 pcs for each model, but we accept small order as trial order. 4. How could I get a sample? Sample fee and freight charge will be listed on sample PI. Once our finance team confirms received your payment, sample and tracking number will be sent. 5. What's the payment terms? We accept TT (Telegraphic Transfer), Western Union etc as payment term for small order and L/C for larger order. 6. What's the delivery time? Usually 7-15 working days after received payment, but it depends on the order quantity. Estimated delivery time will be informed by sales before final payment. 7. What type of shipment will you use? We usually ship the products by express delivery to your door or by air freight to your nearest airport. If the order quantity is large, we may ship by sea. 8. How about quality control? ISO systems help our factory improve management level, ERP system can help us control the cost of procurement links effectively, so we can provide competitive price, new test equipments can do uninterrupted fatigue testing to ensure products using life. Pre-shipment inspection and third-party supervision are available. 9. Do you have agency for after-sales service? Sure. Our sales will instruct the installation of products and software. Please feel free to contact us if you meet any technical questions, we will help you work it out. 10. How can I be your sole-distributor? We have special policy for sole-distributor. Please contact our sales to get related files. Any further questions, welcome to contact our sales. |
