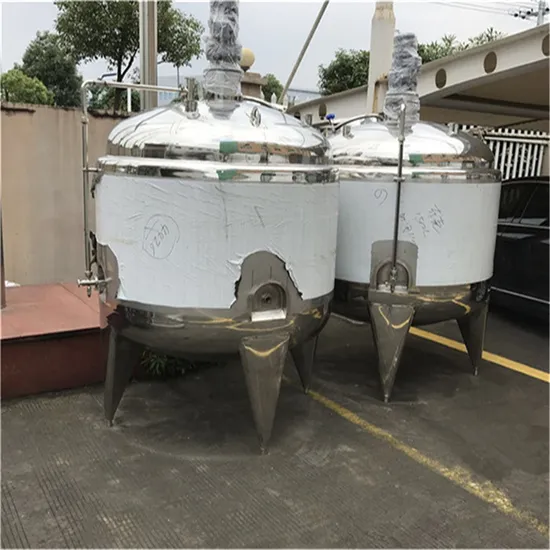

2000L CE Atex Stainless Steel Biorefinery Precipitation Mixing Tank with Agitator

Product Description

Factory Supply Top Quality Sanitary Mixing Tank with Agitator Mixer
Sanitary Electric Heating Liquid Blending Tank
2000L CE ATEX Stainless Steel Biorefinery Precipitation Mixing Tank with Agitator
Stainless steel mixing tank
1). SUS316L or SUS304
2). Can mix the liquid, fluid
3), Capaciy: 100L~10000L
4), application: Food, beverage, pharmaceutical, chemical, etc.
Brief description
This liquid mixing tank with agitator combines the function of mixing, blending, dissolving, heating, cooling, circulation, etc. Suit for mixing and blending various materials.
Application:
The liquid mixing and blending tank is applied to reaction agitating of liquid scrubbing, textile assistant, medicine chemistry, food, beverage, perfume, perfumery compound, etc
Also applied to the products of homogenization, emulsifying, particle dispersion, etc

Work Volume	Dimension of tank	Total height	Insulated layer	Diameter of inlet&outlet	Motor Power	Blending speed
(L)	(mmxmm)	(mm)	(mm)	(mm)	(kw)	(r/min)
500	840*1000	2300	60	38	0.75	Rotating 20,35,50, 100,500 Stepless speed reducer or inverter reducer available
600	920*1000	2400	60	38	0.75
700	990*1000	2400	60	38	0.75
800	950*1220	2550	60	38	0.75
900	1010*1220	2700	60	38	0.75
1000	1060*1220	2700	60	51	1.1
2000	1340*1500	2750	60	51	2.2
3000	1410*2000	3500	60	51	4
5000	1910*2000	3850	60	51	5.5
10000	2300*2440	4500	60	51	7.5
15000	2530*3000	5200	60	51	7.5
20000	2640*3660	5800	60	51	7.5

Feature:
1: Blending system adopts single-direction or double-direction wall scraping blending to satisfy different technological requirement
2: Frequency conversion speed adjustment.
3: Material can be heated or cooled according to tech stand mixer nological requirements
4: Electric heating or steam heating
5: Various forms of blending vanes are suitable for production of different types of products.
6: Made of imported SUS304 or SUS316L stainless steel. The tank body and pipe are subjected to mirror polishing
7: Bottom installation type dispersing head and FLUKO pipeline type emulsifying head are optional to speed up dissolution and emulsification of materials.
8: The stainless steel electric control cabinet can completely supervise the operation of equipment, and display such data as temperature and blending rotation speed, etc
9: High-speed disperse (homogenizer) strongly mixed decentralized thick, solid, liquid.
Cosmetic producing machine; Cosmetic producing machine; Cosmetic producing tank; Daily chemical stirring vessel; Detergent agitator boiler; Detergent agitator pot; Stainless steel blending pot; Stainless steel blending machine; Stainless steel blending tank; Stand mixer; Static mixer.
