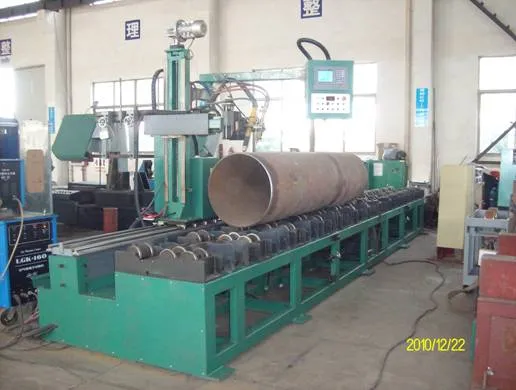

Roller-Bench-Type Pipe Flame Beveling & Cutting Machine (BPFBM-24A1/A2) - 1

Product Description

Performance features
On-line performance: Very good (designed as per the on line equipment of the production line)
Beveling speed: ≤ 3min /pipe bevel (dn200 sch40) /≤ 5min /two pipe bevels (dn200 sch40)
Bevel cutting: Cutting off & with one bevel of the pipe at simultaneously for /cutting off & with two bevels of the pipe at simultaneously
Bevel quality: Good
Technical parameters
Pipe diameter applicable: Dn100~600(Φ 114~610)
Applicable wall thickness: 5~50 mm
Materials applicable: Carbon steel, alloy steel, and cryogenic steel
Cutting length: 6350mm
Bevel shape: V
Cutting direction: Lengthwise
Roller bench:
Structure: Three line steel roller with fixed distance
Roller bench length: 7000mm
Driving system: Servo motor + precision reducer
Rev: 0~2.5m/min (vf stepless speed adjustment)
Roller bench material: 45#, surface bluing treatment
Rotation accuracy: <2.0mm
Trolley system:
Trolley travel: 6350mm(moving lengthwise)
Cutting torch travel: 700mm (up/down); 300mm (in/out)
Cutting with: Flame cutting(can be equiped with plasma cutting)
Cutting torch angle: ± 45° (adjustable)
Cutting torch quantity: One piece of flame cutting torch /three pieces of flame cutting torch
Angle error: <2°
Length fixing accuracy: <2.0mm
Control system: Sh-2000h flame CNC cutting system
Length-measuring system: CNC length measuring which is included in the control system.
Conveying system: Built in a conveying system equipped with a lifter; One set of conveying system can be provided additionally for bevel cutting machine if necessary and conveying can be implemented manually or electrically.
our company is the most innovation ability provider of integrated solutions for piping fabrication, also is the unique provider of professional piping plant design software & management software system and piping equipments in China which included pipe spool fabrication line, cutting equipments, bevelling equipments, fitting up equipments, handling equipments, welding equipments

---
