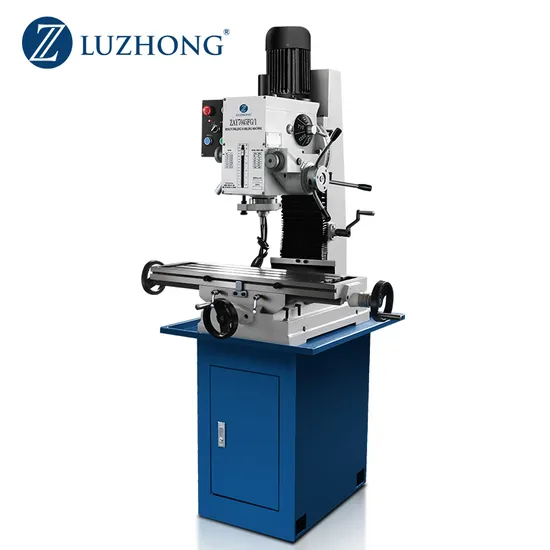

China ZAY7032FG-1/ZAY7040FG-1/ZAY7045FG-1 Bench Drilling and Milling Machines

Product Description

China ZAY7032FG-1/ZAY7040FG-1/ZAY7045FG-1 Bench Drilling and Milling Machines
Product Description
The main performance characteristics:
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Auto-lifting headstock electrically
Numeral depth gauge for spindle feeding
Heighten and steadier column
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Standard accessories:
Allen wrench
Drift
Spanner
Drill chuck rod
Screw-driver
Draw bar and gasket
Optional accessories:
Stand
Oil basin
Power feed attachment
Machine vice
Drill chuck
Milling cutter holder
Reducing sleeve
Mill chuck
Boring rod
Tapping electrical system
Coolant system Product Parameters
Product main technical Specifications:

SPECIFICATIONS	Units	ZAY7032FG/1	ZAY7040FG/1	ZAY7045FG/1
Max. drilling dia.	mm	32	40	45
Max.boring dia.	mm	50	60	70
Max.face milling dia.	mm	63	80	80
Max.end milling dia.	mm	20	32	32
Distance between spindle nose and table surface	mm	450	450	450
Min.distance from spindle axis to column	mm	260	260	260
Spindle travel	mm	130	130	130
Spindle taper	-	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Spindle speed steps	-	6	6	6
Spindle speed	r.p.m50Hz 60Hz	80-1250	80-1250	80-1250
		95-1500	95-1500	95-1500
Spindle feed steps	-	6	6	6
Spindle feed range	mm/r	0.06-0.30	0.06-0.30	0.06-0.30
Swivel angle of headstock (vertical)	°	±90	±90	±90
Table size	mm	800*240(opt.1000*240)
Table travel	mm	500*175(opt.700*175)
Main motor Power	KW	0.75(1HP)	1.1	1.5
Machine weight	kg	370	373	375
Overall dimension(L*W*H)	mm	770*880*1860	770*880*1860	770*880*1860
Loading amount	-	36pcs/20′container	36pcs/20′container	36pcs/20′container

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
