Basic Info.
Certification
CE, ISO, IEC, ISO9001, ISO13485
Max Capacity
6X100ml Angle Rotor
Popular Rotor2
24X1.5/2ml
Transport Package
Wooden Box
Specification
table top type
Product Description

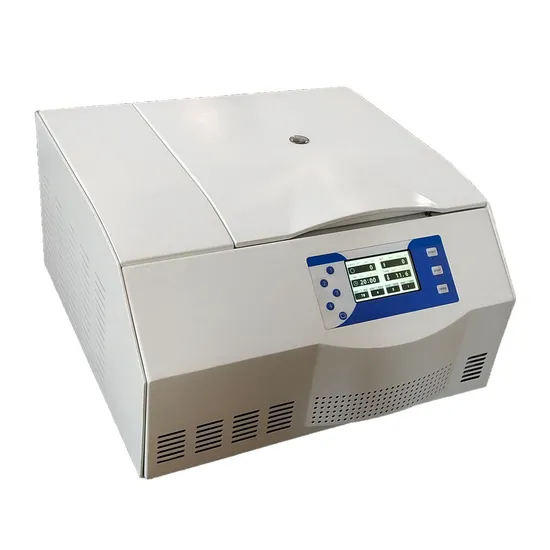

Hospital Blood detection equipment centrifuge 24x1.5/2ml angle rotor
can hold 12/24/32/48 tubes 1.5ml 2ml centrifuge
If you need spin 6x100ml,12x15ml,24x15ml ,12x8PCR,2X3X48well micro plate or 6x50ml
angle rotor, this model TGL16 (refrigerated)centrifuge all can meet the requirements!
TGL16 Technical Parameter:
| Max. Speed | 16000rpm |
| Max. RCF | 20600×g |
| Max. Capacity | 6×100ml |
| Time Range | 1~9h59min |
| RPM/RCF Convert | Yes |
| Noise (dB) | ≤ 58 |
| Acc/Dec | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Temperature Accuracy | ±1ºC |
| Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
| Size (L x W x Hmm) | 513×370×320mm |
| Net Weight(Kg) | 84KG |
| Certificates | CE,ISO & Calibration report are available |
| Temperature Range | -20ºC~40ºC |
Matched Rotor for TGL16:
| Order No | Rotor | Max speed (rpm) | Max Volume(ml) | Max RCF (g) |
| G16-1 | Angle rotor | 14000 | 4×8PCR | 12070 |
| G16-2 | Angle rotor | 13000 | 6×8PCR | 16080 |
| G16-3 | Angle rotor | 14000 | 8×8PCR | 13390 |
| G16-4 | Angle rotor | 13000 | 12×8PCR | 17220 |
| G16-5 | Angle Rotor | 15000 | 30×0.5ml | 18510 |
| G16-6 | Angle Rotor | 14000 | 40×0.5ml | 19970 |
| G16-7 | Angle Rotor | 16000 | 12×1.5/2ml | 17940 |
| G16-8 | Angle Rotor | 15000 | 24×1.5/2ml | 20600 |
| G16-9 | Angle Rotor | 13500 | 30×1.5/2ml | 19340 |
| G16-10 | Angle Rotor | 11000 | 48×1.5/2ml | 12840 |
| G16-11 | Angle Rotor | 15000 | 16×5ml | 19350 |
| G16-12 | Angle Rotor | 14000 | 12×7ml | 16370 |
| G16-13 | Angle Rotor | 14000 | 6×10ml | 16460 |
| G16-14 | Angle Rotor | 13000 | 12×10ml | 14510 |
| G16-15 | Angle Rotor | 10000 | 12×15ml | 11840 |
| G16-16 | Angle Rotor | 5000 | 24×15ml | 3080 |
| G16-17 | Angle Rotor | 5000 | 30×15ml | 3830 |
| G16-18 | Angle Rotor | 12000 | 8×20ml | 14510 |
| G16-19 | Angle Rotor | 12000 | 6×30ml | 14000 |
| G16-20 | Angle Rotor | 11000 | 6×50ml | 13480 |
| G16-21 | Angle Rotor | 12000 | 6×70ml | 10810 |
| G16-22 | Angle Rotor | 8000 | 6×100ml | 7280 |
| G16-23 | Angle Rotor | 12000 | 24 pieces capillary vessel | 15800 |
| G16-24 | Microplate rotor | 4000 | 2×3×48 Well | 2300 |
| G16-25 | Angle Rotor | 12000 | 4x100ml | 14850 |
certificates
Exhibition shows
If you have any questions or inquiry on Centrifuges, just feel free to let me know~
Skye always stay here for serving you~
>>
