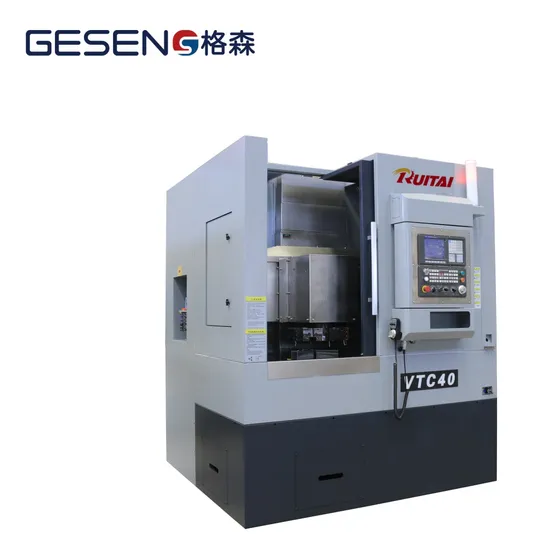

Vtc40 High Precision Metal Turning Milling Machine Tool High Speed CNC Vertical Lathe 400mm

Product Description

CNC VERTICAL LATHE
CNC vertical lathe adopts computer control system equipped with multi-axis control function,which has advantages such as high-precision processing, complex shape processing, high-efficiency production, reduction of human error, automatic processing, good batch processing, as well as, repeatability and improvement of production safety. These advantages make CNC vertical lathe widely used in metal cutting field, and play an important role in improving production efficiency and product quality.

Technical Parameter of VTC Series CNC Vertical Lathe

Items	Unit	VTC40	VTC50	VTC60	VTC70	VTC80A	VTC100A
Travel of X axis	mm	400	500	425	700	670	850
Travel of Z axis	mm	500	0~500	90~690	0~850	170~1020	0~1000
Max. Swing diameter	mm	Φ600	Φ650	Φ650	Φ800	Φ1000	Φ1200
Max. Turning diameter	mm	Φ400	Φ500	Φ600	Φ700	Φ800	Φ1000
Max. Turning height	mm	500	500	600	850	850	1000
Spindle speed	rpm	100-1000	100-1000	100-1000	100-800	100-800	100-800
Spindle motor power	Kw	15	15	18.5	22	22	22
Outer diameter of mandrel	mm	Φ130	Φ130	Φ160	Φ160	Φ180	Φ200
Hydraulic chuck diameter	inch	12"	15"	18"	21"	24"	32"
Position of turret		8	4/8	4/9	4/10	4/11	4/12
X-axis rolling linear guide rail (pcs*wide)	mm	2*35	2*45	2*45	2*45	2*45	2*55
Z-axis rolling linear guide rail (pcs*wide)	mm	2-45	2*45	2*55	2*55	2*55	2*55

CUSTOMIZATION SERVICE
Professional machine design to meet various working demands.
Vertical tool rest/tool turret/working height/worktable/CNC or manual/color

Kindly contact us to get your vertical lathe machine tool.

---
