Electric hydraulic drum brake

Product Details

Product Description

Product Description

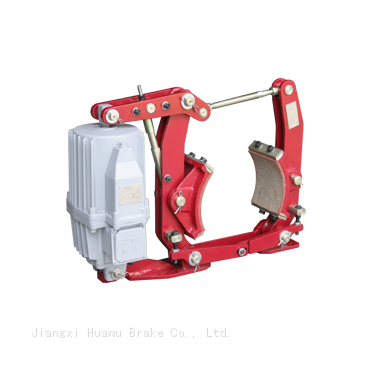

Electric hydraulic drum brake
The YWK series electric hydraulic drum brake is mainly used for deceleration braking of large vehicle operating mechanisms of various general bridges and gantry cranes, and can also be used for deceleration braking of non lifting winch drive devices.
MAIN FEATURE:
01
The interlocking distance equalization device and automatic tile positioning device can always maintain equal distance between the tiles on both sides without adjustment, completely avoiding the phenomenon of one side of the brake pad floating against the brake wheel due to uneven distance.
02
The main swing hinge points are equipped with self-lubricating bearings, which have high transmission efficiency and long service life.
03
The brake pad is a card type integral molding structure, which is very convenient and fast to replace. It is available in different materials such as semi metal (asbestos free) hard and semi hard, soft (asbestos free), etc. for users to choose from.
BASIC PARAMETER:
YWK series Electric hydraulic drum brake：
TYPE：YWK160-220、YWK200-220（300）、YWK250-220（300、500）、YWK300-300（500）、YWK315-300（500、800）、YWK400-500（800、1250）、YWK500-800（1250、2000）
Disc(mm)：160、200、250、300、315、400、500
Torque(Nm)：100~3550

---
