Eco-Friendly Disposable Thermoforming Machine Sy-680b for Biodegradable Pet PP Plastic Water Cups Coffee Cups and Bowls

Product Description

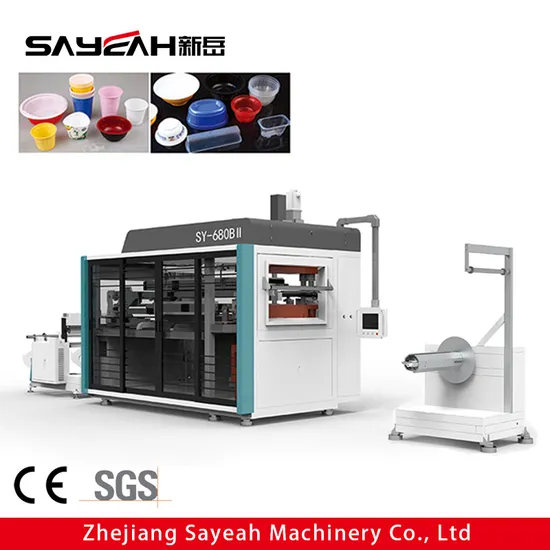

Eco-Friendly Disposable Thermoforming Machine SY-680BIII, designed for Biodegradable PET and PP Plastic water Cups, Coffee Cups and Bowls
Product Description
SY-680 III is full servo motor system plastic cup thermoforming machine, it's sheet feeding and stretching partare driven by servo motor, can produce disposable products, such as plastic cup, bowl, lid, and box through the sheet feeding, sheet heating, forming cutting in one station and blowing, widely used for most of the customer requested. PLC for program, manual interface for operation,stable, low noise, and high efficiency.
Features
1. The operation of the machine is controlled by PLC and touch screen
2. The mold guide plate adopts four guide posts to ensure the mold clamping accuracy
3. The chain frame adopts fast cooling and wear-resistant design
4. The chain frame exits the safe mold change system, which can greatly reduce the difficulty of mold change
5. The cup blowing system can adjust the cup blowing angle and air volume Product Parameters

Model	SY-680III
Max Forming Area	650*320mm
Max No-load Speed	40 cycles/min
Running Pattern	Servomotor
Feeding Pattern	Servomotor
Stretching Pattern	Servomotor
Sheet Thickness	0.2-2mm
Max Forming Deepth/Height	<=135mm with robot, <=180mm by blowing

Main Electrical Components
Industrial control system	DELTA TAIWAN / Inovance Shenzheng
PLC	DELTA TAIWAN / Inovance Shenzheng
Touch screen interface	DELTA TAIWAN / Inovance Shenzheng
Feeding servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Stacking servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Forming servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Cutting servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Vacuum pump	RUFUS,Jiangsu
Infrared ceramic heater	Tianbao, CHINA (3 years Warranty)
Solid state relay	SHANGHAI, AOYI
Pneumatic components	MAC,USA/SMC, Japan/ Germany

According customers' requirements, there also Lenze system for choosing Relate Products

---
