Impact Crawler Mounted Rotary Pneumatic Pile 150m Portable Core Coring Borehole Water Well Mine Drill Drilling Rig

Product Description

Product Description Introduction

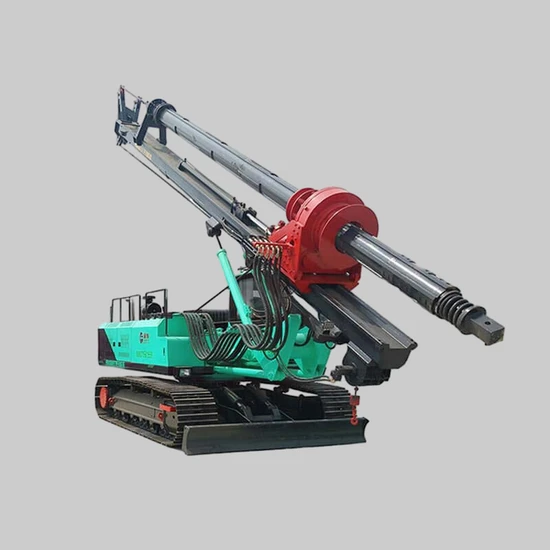

HF40+ crawler type rotary drilling rig adopts pressurized drilling mode, enabling rotary drilling depth is 40m, matching the different specifications of drilling tools, pile hole diameter ranges 500-1500mm.
It has high drilling efficiency, and after construction, it can quickly move to next working site. It is flexible, convenient and efficient, a national high-speed rail construction-specific piling machinery equipment.
This machine is applicable to soil, clay, fill soil, silt, silt layer, and some strata contain pebbles, gravel, widely used in high-speed rail trestle piles, slop shield piles, photovoltaic power station foundation pile, power grids, civil construction, new rural construction, municipal construction, landscaping and other projects.
Features:
Flexible: the whole tonnage is small, simple operating, moving fast, convenient transition, etc.
High returns: small investment, quick gains, economic advantages can not be replaced. Technology patents: patent uses a unique technology to achieve a small torque but big power characteristics, thus achieve a small machine to drill big piling hole.
Product Parameters

Type		HF40+ Rotary Drilling Rig
Drilling depth		40m
Hole diameter		1600 mm
Engine	Brand	Cummins
	Power	170KW
Power Head	Torque	150 KN.m
	Rotating speed	5-30 r/min
Main Winch	Maximum lifting force	160 KN
	Lifting speed	64 m/ min
	Wire rope diameter	26 mm
Vice Winch	Maximum lifting force	50 KN
	Lifting speed	60 m/ min
	Wire rope diameter	14 mm
Pressurized Cylinder	Maximum pressure	150 KN
	Max lifting speed	150 KN
	stroke	3500 mm
Walk	Walk speed	3 km/h
	Maximum grade	15 °
System pressure		32 Mpa
Weight		41 T
Working Radius		4.8 m
Dimensions (L * W * H)		14.3 m*3.8m*3.8m

Working Site
Company Profile
FAQ 1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.

---
