F Shape CNC Wire Cutting Machine Mini M320

Product Description

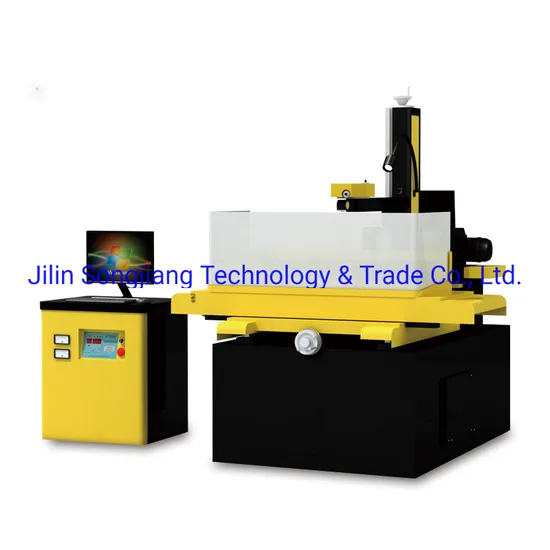

1.Equipment Photo:
2.Equipment Features:
1)Smart CNC wire cutting machine is an economical and efficient machine which is designed for individual processors and small&medium-sized enterprises.
2)The series can save space.The processing speed is fast and the embedded control system is adopted,maximizing reduced the maintenance.
3)The equipment is suitable for customers who require higher processing efficiency and lower roughness and accuracy.
3.Equipment Specification:

No.	Description	Unit	Specification
	Model		M320
1	Worktable Size (L×W)	mm	630×450
2	Worktable Travel (X×Y)	mm	350x450
3	Max. Workpiece Height	mm	500
4	Max. Workpiece Weight	kg	300
5	Machine Dimensions (L×W×H)	mm	1650x1180x1720
6	Machine Weight	kg	1100

4.Electrical Parameters:

No.	Description	Unit	Specification
	Model		M320
1	Max. Cutting Speed	mm²/min	180
2	Wire Electrode Diameter	mm	Φ0.18-Φ0.25
3	Machining Precision (Cutting the octagon in 10mm)	mm	≤0.015/Ф10, Height<100mm
4	Taper/Workpiece Height		±3°/100mm
5	Power Consumption	kw	2
6	Surface roughness	μm	Single cut Ra<3
7	High pressure water tank		Multi-stage filter system
8	Plastic water jet plate; Bronze spout
9	Control method of Z-axis manual, transport wire tube, cooling system		Controlled by the program and the NC panel
10	Repeating position precision of X, Y-axis	μm	±2
11	Guide rail type of U,V-axis		V-groove rail
12	Speed regulation of transport wire tube		Converter
13	Number of control axes		5
14	Power Supply		AC380V, 50Hz

***Our company hold the authority to improve the design&specification of the products without special notification.
\

---
