8 Ton Smallmachine Crawler Excavator Xe80c

Product Description

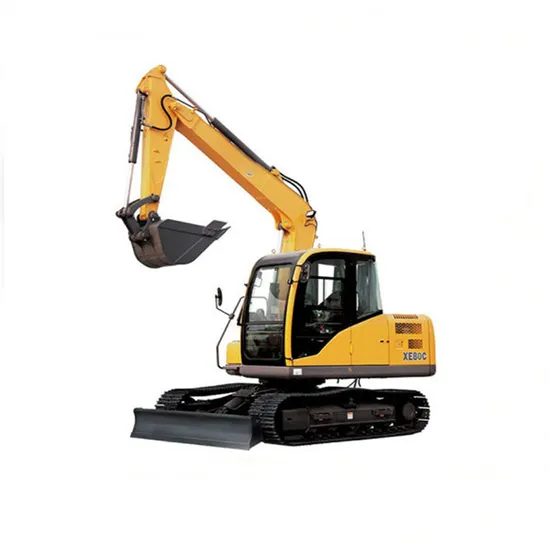

8 Ton SmallMachine Crawler Excavator Xe80c

Product Description

* Reinforced boom,arm and bucket to ensure powerful digging force in harsh conditions.
* Full open hood is easy to troubleshoot the engine and other parts.
* Optional break hammer and pipeline.quick coupler, rotary driller,hydraulic vibrating tamper are available.
* The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
* The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.

Product Parameters

Model			XE80C
Bucket capacity		m3	0.34
Standard bucket width		mm	722
Operation weight		kg	7,425
Dimension(in transportation)	Overall length	mm	6,155
	Overall width	mm	2,220
	Overall height	mm	2,618
	Min. clearance	mm	392
Engine	Model		B3.3
	Total displacement	L	3.3
	Rated output power	KW/rpm	60/2200
Digging performance	Max. digging height	mm	7,167
	Max. dumping height	mm	5,100
	Max. digging depth	mm	4,140
	Max. vertical digging depth	mm	3,218
	Max. digging radius	mm	6,375
	Boom deflection angle	°
	Min. slew radius	mm	1,815
	Min. rear slew radius	mm	1,770
	Bucket digging force	kn	53.6
Track type			Steel
Track width		mm	450
Travel System	Track length	mm	2,752
	Wheel base	mm	2,119
	Track gauge	mm	1,700
	Travel speed (Gear I/II)	km/h	4.2/2.7
	Gradeability	%	70
Slew speed		rpm	12
