| US$0.10 | 1 Piece (MOQ) |
| Max. Reel diameter | 1200 mm |
| Paper width | 650-1020 mm |
| Printing-cutting length | 420-650 mm |
| Printing color | 2 colors on both side |
| Max. Ruling width | 1000 mm |
| Max. Machine running speed | 250 m/min (depend on paper GSM and quality) |
| Number of sheets per group | 10-60 sheets (≤10mm) |
| Inner page thickness | 55-120 g/m2 |
| Cover thickness | 150-300 g/m2 |
| Cover length | 420-650 mm |
| Cover width | 148-230 mm |
| Max. Cover pile height | 500 mm |
| Spine tape width | 20-35 mm |
| Power require | 62kw, 380v, 3phases |
| Floor plan | 24.5*7.8*2.3 m |
| Total machine weight | 25.3 T |

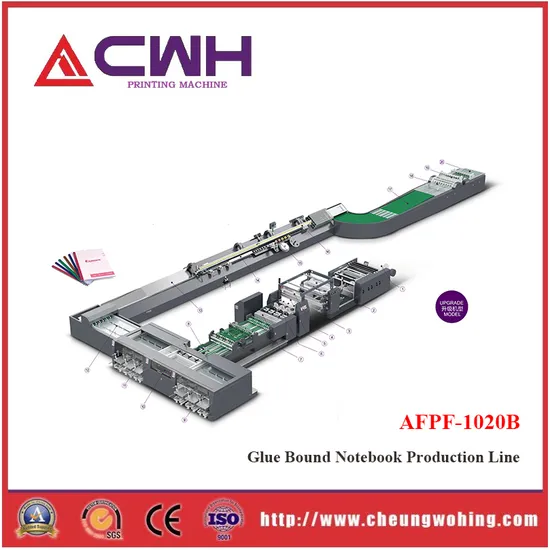

1. some famous brand electric control components are adopted, such as germany siemens PLC, touch screen, frequency transformer and servo drive (or japan mitsubishi brand),and French low-voltage electrical apparatus. 2. AFPF-1020B fully automatic glue back notebook production line has the multi-functions of paoper feeding system,ruling with rectifying,perforating,sliting,center folding,rotary cuttingcounting,inner sheets collecting,cover inserting book back gluing,glue drying,paper taping,tape cutting,delivery,collecting,and book drying before trimming,as well as finishing trimming with production counting. |
| Established in 1995,Cheung Wo Hing Printing Machinery Co.,Ltd(CWH)is a large-operated company based on Hong Kong,lt concentrates on R & D,manufacturing,marketing,and professional printing machinery.CWH takes "Based in China Viewing the world"as its long-term developing strategic objective.For more than 20 years.CWH has been commiting production-line which is used for notebook manufacturing related machinery.CWH has also been an agent in China for some of advanced Printing machinery and equipment manufactured at home and abraod.They are highly appreciated and well accepted by the same industry in domestic and international users for their advanced design,stable and outstanding performance. |
