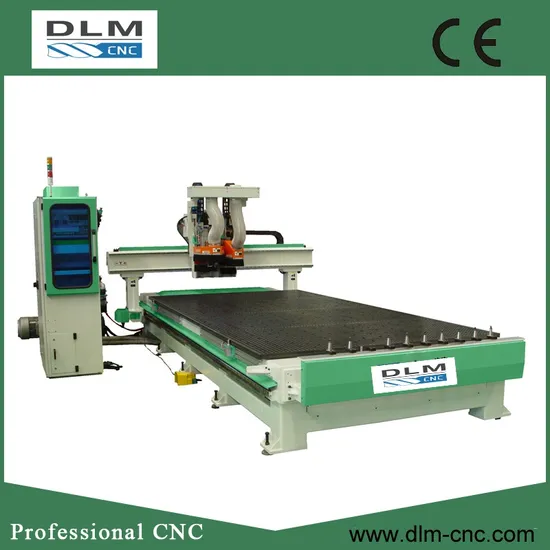

China Wood Router CNC Machining Center

Product Description

CNC Woodworking Machining Center
Product Features:
1. Centralized automatic lubrication system.
2. Tool automatic compensation system.
3. Automatic backlash preloading mechanism.
4. High rigidity design.
5. Taiwan HIWIN ball screw and linear guide.
6. Taiwan precise spiral rack transmission.
7. Italy HSD auto tool changing high frequency spindle.
8. Japan YASKAWA servo motor and driver.
9. Planetary type reducer.
10. Linear type plastic steel changer with 8 tools.
11. Taiwan SYNTEC control system.
Applicable Applications:
1.Suitable for compound processing pattern milling, sawing and drilling. It belongs to the price and high-efficiency machining equipment.
2.Slab countertops can do the whole board adsorption processing directly without the preparation of material cutting.
3.The machine's drilling pattern is multi-function drilling. It is equipped with any arrangement combination of vertical drilling, side drilling, single drilling and group drilling, etc.
4.Suitable for processing display counters, artifical stone flow management units, petrochemical PF filter plates, headboard, insulation plates, styrofoam model, yacht bedroom, OA office desktop.
Technical Parameters:

Model	UAB-612L	Name	CNC Machining Center
Standard Configuration
Item	Specification	Remarks
Table size (mm)	3660X1830
Traveling size X-Y-Z (mm)	3760X1930X300
Max. working piece height(mm)	200
Weight (Kg)	3500
Systemic resolution (mm)	±0.0025
Repositioning resolution (mm)	±0.02
Max. running speed (m/min)	80
Max. cutting speed(m/min)	20
Working voltage (V/PH/HZ)	380/3/50
Cabinet	Big cabinet with single door+heat exchanging cooling+CE	Big cabinet with double doors if add pneumatic drill
Spindle (KW)	9.0(ISO30)	HSD air cooling
Spindle Speed (r/min)	24000
Working air pressure (MPa)	0.6
Table design	Pure adsorption one zone	Double layer 30mm
Vacuum Pump	5.5KW/160m3/tongyou pump	Including non-return valve and filter
Positioning Cylinder	3
Tool Magazine	disc plastic steel 8 tools
Driving system	Servo	YASKAWA
Software	Router-8(France) China CAM(England)-for drilling
Pneumatic drill	5V/7V/9V/7V2H/9V3H1S/9V2H2S etc	FAM
Optional
Item	Specification	Remarks
Spindle(KW)	9.0(HSK-F63) 12(ISO-30,HSK-F63)	HSD air cooling
Table Design	Pure adsorption 2 zones(2 stations working )	Double layer30mm
Vacuum Pump	4KW/140m3/h Becker	Including non-return valve and filter
Driving System	Servo	SIEMENS
Operation System	Syntec 10A+PC
Tool magazine	Disc plastic steel 12 tools
Protection Device	Protection fence/safe carpet/laser light curtain

Other Models:

Model	Table Size(mm)	Travelling Size X-Y-Z(mm)
UA-48	2440X1220	2540X1320X300
UA-410	3050X1220	3150X1325X300
UA-412	3660X1220	3760X1320X300
UA-416	4880X1220	4980X1320X300
UA-58	2440X1525	2540X1625X300
UA-510	3050X1525	3150X1625X300
UA-512	3660X1525	3760X1625X300
UA-516	4880X1525	4980X1625X300
UA-68	2440X1830	2540X1930X300
UA-610	3050X1830	3150X1930X300
UA-616	4880X1830	4980X1930X300

---
