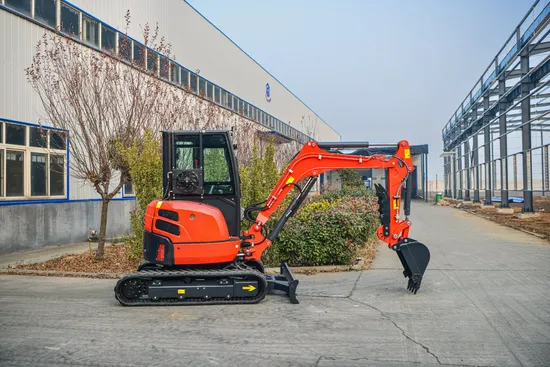

Small Crawler Excavator Multifunctional Backhoe Loader

Product Description

Product application
The components of the machine are all imported with better performance. it is popular with people inagricultural and construction fields, since it can be used for wasteland opening, rock excavation, road openinaon the hils, planting, construction site, road breaking, cable trench excavation, drainage excavation andindoor/outdoor breaking.
Performance Features
lmported accessories, improve work efficiency.
Hydraulic pilot control, accurately control by the feet.
Using load sensitive variable plunger pump ,smooth operation and flexible movement.
The lower plate adopts X-shaped frame design, and the entire steel plate is cut in one piece making it strong and durable.
The rotary motor gear adopts spline form, which has large transmission torque and is not easy to be damaged. Product Parameters
Model 30

Total length	4180mm	Maximum Digging Height	3900mm
Total Width	1350mm	Maximum Dumping Height	2600mm
Total Height	2250mm	Maximun Digging Depth	2500mm
Crawler Width	230mm	Maximum Digging Radius	4040mm
Crawler Length	2000mm	Bulldozer Maximum Depth	190mm
Body Width	1350mm	Bulldozer Maximum Raising Height	350mm
		Options
Bucket Capacity	0.1CBM	Enclosed Cabin Air Conditioner Stell Track Kubota Engine Retractab Chassis High-Low Speed Walking Motor
Engine	LAIDONG3TE30/22.1kw
Walking Speed	2.7km/h
Rotation Speed	10r/min
Platform Ground Clearance	458mm
Swing Angle	360°
Climbing Gradient	30°

Model 35

Total length	4180mm	Maximum Digging Height	3900mm
Total Lidth	1500mm	Maximum Dumping Height	2600mm
Total Height	2250mm	Maximun Digging Depth	2500mm
Crawler Width	250mm	Maximum Digging Radius	4040mm
Crawler Width	2300mm	Bulldozer Maximum Depth	190mm
Body Width	1500mm	Bulldozer Maximum Raising Height	355mm
		Options
Bucket Capacity	0.1CBM	Enclosed Cabin Air Conditioner Stell Track Kubota Engine Retractab Chassis High-Low Speed Walking Motor
Engine	XINCHAI490 / Kubota V1505
Walking Speed	2.7km/h
Rotation Speed	10r/min
Platform Ground Clearance	458mm
Swing Angle	360°
Climbing Gradient	30°

Detailed Photos

---
