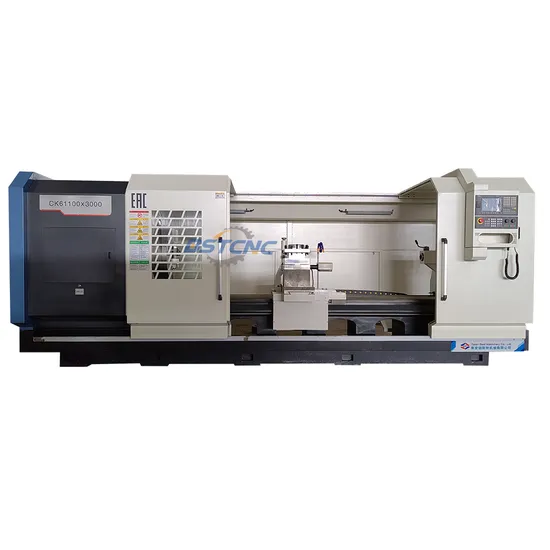

Ck61100 Heavy Duty Horizontal Metal CNC Lathe Machine

Product Description

Product Description
This series CNC lathe is an economic machine tool which capables of rough machining and finish machining with mechanical workpieces. Its main characters such as reliable structure , easy operating, economical and practical, with comprehensive control system meet the performance needs of many industries. This series lathe is mainy used for the processing of the inner hole, end face, cylindrical surface, conical surface, threading of shafts ,discs and rotational parts. lt is widely used in auto industry industry because of its high efficiency and high precision machining features.
Product Parameters

Iitems		Unit	CK61100
Max dia.swing over bed		mm	1000
Max dia.swing over cross slide		mm	680
Max.length of work-piece		mm	1500
Width of bed		mm	600/650
Spindle nose			C11
Spindle taper			1:20/120
Spindle bore		mm	105
Power of spindle motor		Kw	15
Mode of spindle speed			Three gears,smooth adjustment L:25-100,M:80-260,H:240-700
Min.Feeding set unit of X/Z axis		mm	0.001
X/Z rapid traverse		mm/min	4000/5000
Tailstock	Diameter	mm	100
	Travel	mm	250
	Taper		MT5/MT6
Electric tool-post	Model		HAK-21280
	No.of tool stations		Vertical four station
	Tool shank size	mm	32×32
	Turret indexing time	S	4.1
Chuck			three jaw manual chuck
Positioning accuracy		mm	0.020
Repositioning accuracy		mm	0.01
Overall dimensions(L*W*H)		mm	3800×2200×2100
Machine weight		KG	7700

Standard configuration: Optional configuration:
-GSK980TC3 control system; -Siemens808D,Fanuc0i-TF, Syntec22TA.....
-3 jaws manual chuck ; -Hydraulic chuck, Pneumatic chuck ;
-4 station electric tool post ; -6/8/12 station electric tool post or Servo , hydraulic and power turret;
-Manual tailstock; -Hydraulic / Pneumatic tailstock;
-Automatic lubrication; -Chip conveyor ;
-Coolant system; -Full-closed metal house;
-Semi-closed metal house ;

---
