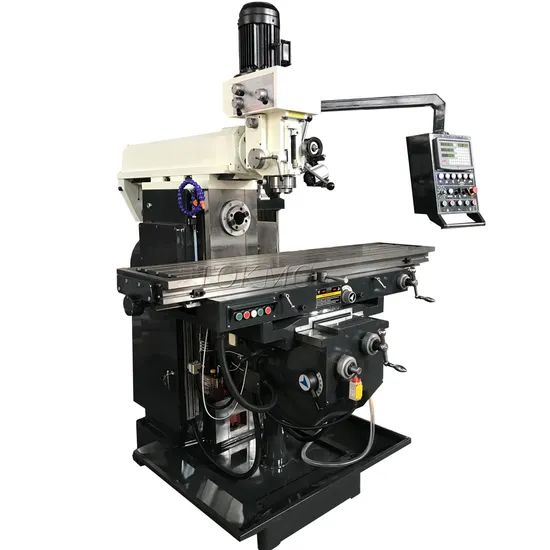

2000X400mm Vertical Horizontal Milling Drilling Machine

Product Description

2000x400mm Vertical horizontal milling machine
Swivel head 45 degree
Servo motor
Common lead screw

Drilling Milling Machine	ZXS1668
Spindle taper	ISO40
Spindle motor	2.2 kw
Spindle speed	90-2000 (Vertical) rpm 60-1850 (H)
Spindle head tilting	±45 degree
Worktable size	1700X400mm
Worktable swivel angle	±45°
The max.weight on worktable	1000 kgs
T-slots Number-table Width -Distance	4-18mm-100mm
Table travel Longitudinal/Cross/Vertical	1300mm/420mm/600mm
X.Y.axes feeding	8steps25-800mm/min Rapid feeding 800mm/min
Z axes feeding	8 steps 8-267mm/min Fast forward 267mm/min
Distance from spindle hole center to worktable surface main horizontal spindle	0-440mm
milling head horizontal (low position)	150-590mm
milling head horizontal(side position)	340-780mm
milling head horizontal (high position)	530-970mm
Distance from spindle nose to worktable surface	50-650mm(Vertical)
Distance from Vertical spindle center to guideway surface	0-1000mm(Vertical milling spindle head)
vertical swivel angle of milling head	360°
Main motor	Vertical Milling 7.5KW (Vertical) Horizontal Milling 5.5KW (Horizontal)
Feeding motor (Servo motor)	2.36KW 15N.M
Coolant pump motor	90W
Coolant pump flux	25 Litres/minute
Overall dimensions	2300X2300X2270mm
G.W	about 3200kg

Company Info
FAQ
-When do you delivery?
Depending on your community we delivery ,10-30 days
-Is machine tested ?
The accuracy , noisy will be tested.
Machine will be running one hour before despatch
-How do I pay? Do you accept cash or L/C?
We accept Interac e-transfers .cash, and T/T ,L/C
-How is the warranty ?
12 months
- If i have a problem, Will you be available by email to assist with solving the problem.
Video techanical support, online service ,We can answer it in 24 hours.

---
