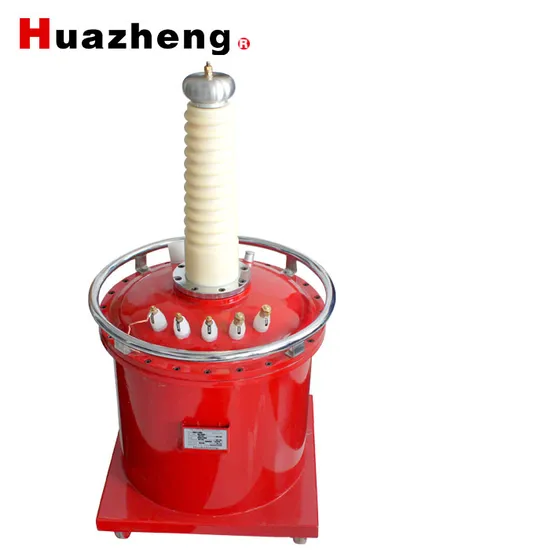

Automatic AC DC Dielectric Withstand Test Device High Voltage Generator

Product Description

Automatic AC DC Dielectric Withstand Test Device High Voltage Generator I. Packaging & Delivery

Packaging Details:	High voltage AC-DC SF6 gas YDQ power testing transformer Inside packing: Bubble board Outside packing: Standard box Customer OEM packing also available
Delivery Detail:	10 days after the deposite

II. Product Description
1. Oil-immersed high voltage transformer test: Large capacity, cheap, convenient maintenance, mainstream products.
2. Inflatable high voltage test transformer: Interrupter resistance, and light weight.
3. Dry typehigh voltage testing transformer: Light weight, light volume, can run backward, price expensive.
4. Series type high voltage testing transformer: Small volume, low voltage, light weight, easy to transport and install.
III. Parameter
AC DC Oil / Dry / Inflatable Testing Transformer Suppliers Technical Data:

Model	Capacity(kVA)	Output(KV) AC DC		Current(Ma) AC DC		Low pressure input		Change	Tempera- ture(ºC)raised/ 30 minute
						V	A
HZYB(G)-1.5	1.5	50	70	30	15	200	7.5	500	10
HZYB(G)-3	3	50	70	60	15	200	15	500	10
HZYB(G)-5	5	50	70	100	15	200/380	25	500	10
HZYB(G)-10	10	50	70	200	100	380	50/26	500	10
HZYB(G)-20	20	50	70	400	100	380	53	500	10
HZYB(G)-30	30	50	70	600	100	380	79	500	10
HZYB(G)-40	40	50	70	800	100	380	105	500	10
HZYB(G)-50	50	50	70	1000	100	380	132	500	10
HZYB(G)-5	5	100	140	100	50	200/380	25	1000	10
HZYB(G)-10	10	100	140	200	100	380	50/26	1000	10
HZYB(G)-20	20	100	140	300	100	380	53	1000	10
HZYB(G)-30	30	100	140	400	100	380	79	1000	10
HZYB(G)-40	40	100	140	600	100	380	105	1000	10
HZYB(G)-50	50	100	140	1000	100	380	132	1000	10

IV. Detailed Photos
V. Company Information
HuaZheng Electric Manufacturing (Baoding) Co., Ltd is the supplier of the State Grid in China. It means we are the supplier of the Chinese Government. And our products spread throughout the whole China. What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on. Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
