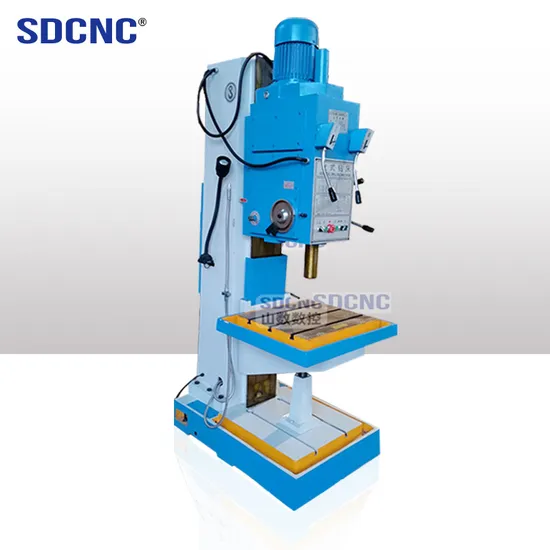

Z5132 China Square Column Vertical Drilling Machine Column Machine Drill Machine

Product Description

Steel drilling machine Z5132 Drilling machine made in china
Product description:1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling,drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very
convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed
operation, novel appearance, convenient maintenance and so on.
SPECIFICATIONS
Product main technical specifications:

Specifications	Z5132
Max drilling dia	32mm
Max feed resistance	12000N
Max. spindle allowable torque	200N.m
Spindle taper	Morse No. 4
Distance from spindle axis to column guideway	280mm
Spindle travel	200mm
Spindle box travel	200mm
Spindle speed	50~2000r/min (9)
The amount of feed(mm/rev)	0.056-1.80mm/r (9)
Working table stroke	310mm
Working table surface size	400×550mm
Distance from spindle nose to table surface	710mm
Main motor power	2.2kw
Cooling pump flow	25L/min
Overall dimension	980*807*2302mm
N/W	1250kg

---
