CNC Portable Plasma Cutter Gantry Metal Cutting Machine Plasma Cross

Product Description

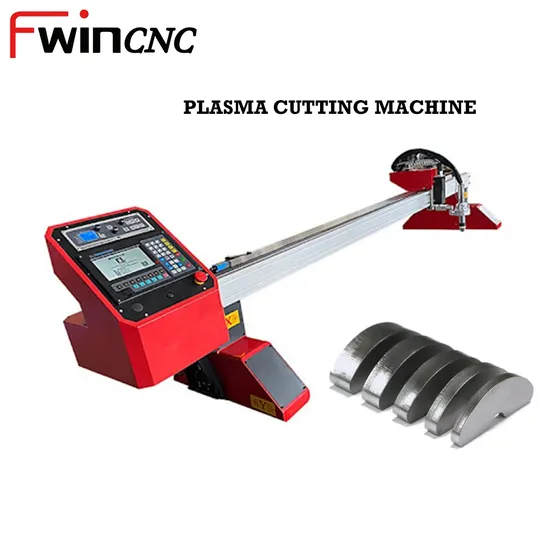

mini metal portable plasma cutting machine with Flame system
Machine Features Small type portable mini cnc plasma cutting machine Programmable cutting arbitrary shape parts of line and arc . Dynamic and static graphic display ,easy to learn . Can convert CAD file in computer ,through USB flash drive transmits to machine to realize cutting all kinds' graphs and also can program and operate directly on the machine . Can use flame cutting (gas cutting ) and plasma cutting . Interfaces in English or Chinese can be converted freely . Economical , Portable and easy to operate . Great working stability , Effective shield plasma high frequency interference Available Sizes
1000 x 2000mm, 1250 x 2500mm,
1500 x 2500mm
1500 x 3000 mm
2000mmx4000mm
Kindly TIPS:
Being a machine suppliers..offering service -after sales is more important than selling machine itsself..Laterly we have been receiving some potentioal clients that their old supplier disappeared after delivery on machine..The clients are very helpless without their support..So please trust us,
good name or good repulation is our life!!
Long life Portable CNC Plasma Cutter with flame torch Product Description

Technical specification
1	Model	ALLWIN-2040	ALLWIN-2060
2	Power source	AC 220±10%VAC 50/60Hz 220W
3	Cutting mode	O2/C3H8 or C2H2
4	Effective cutting range(mm)	2000mmx4000mm	2000mmx6000mm
5	Plasma cutting gas	N2,O2,compressed air
6	Flame cutting gas	Oxygen+ propane or acetylene
7	Cross beam width*guide rail length (mm)	2000*3000mm
8	Cutting speed mm/min	50-10000mm/min
9	Flame Cutting thickness (mm)	5-150 (Oxygen + acetylene or propane)
10	Plasma Cutting thickness (mm)	2-20mm
11	Move precision	±0.2mm/m
12	Torch	Flame, electric height adjustment(±60mm)
13	Cutting system	Start control system
14	Host weight(kg)	19
15	Total weight(kg)	100	120	150
16	Gas pressure(Mpa)	Max.0.1
17	Oxygen pressure(Mpa)	Max.0.7
18	Type of gas	C3H8 C2H2
19	Emergency stop	Yes
20	Working temperature	-5~45ºC
21	Power	8.5kw
22	Plasma power	60A OR 100A
23	ARC	Untouched arc striking
24	Processing Materials	Iron, steel aluminum sheets, galvanized sheets, Titanium plates

Service. We have 10 experienced engineers and 1 technical online customer service to supply 18-hour online service. If you have any problems, we can solve them online via skype and whatsapp
Also, remote control service via the software Team Viewer is provided for the customer to install the software and adjust the program.
Different cnc plasma power supply cutting capacity:
1. Chinese Huayuan Power:
63A cutting thickness: 0-8mm
100A cutting thickness: 0-15mm
160A cutting thickness: 0-20mm
200A cutting thickness: 0-30mm
USA Hypertherm power
65A cutting thickness: 0-12mm
85A cutting thickness: 0-16mm
105A cutting thickness: 0-18mm
125A cutting thickness: 0-20mm
200A cutting thickness: 0-30mm
Product Application Portable CNC plasma and flame cutting machine is specially designed for metal plate cutting,it is characterized of high automation and efficiency,easy operation and long service time. This CNC plasma and flame cutting machine is gantry structure with double-driven system, working size can be customized upon requirement.It can be used for cutting carbon steel, stainless steel and non-ferrous metal in any 2d graphics, thus is widely used in metal cutting fields.
This gantry plamsa and oxgen gas cutter can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other nonferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
FAQ for CNC plasma cutting table:
1. Q: Are you manufaturer or trading company?
A: We are a factory with 15 years manufacturing experience.our main products is IGBT inverter air plasma cutter,CNC cutting machine,welding machine,beveling machine.
2. Q: what certificate do you get?
A: CE ,ISO,CCC and SGS.
3 Q:How many days for mass production?
A:15 working days after receipt of remittance.
4 Q:what is your garantee period?
A:1 year.
5. Q:cutting material?cutting range?
A:All kind of sheet metal,aluminum,copper,brass. effective cutting width is 1500mm,effective cutting length is 3000mm.
6 Q:what after-sale service do you offer?
A: 24 Hours Online Service, Free spare parts for breakdown machine in warranty service
7.Q:cutting speed?
A:0-2000mm/minute
8.Q: working voltage?
A:AC220V

---
