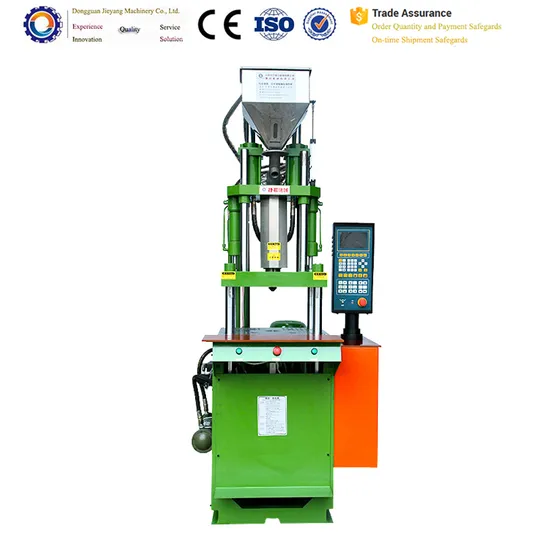

High Accuracy One-Color Vertical Plastic Plug Injection Machine Price

Product Description

PVC plug plastic moulding machine,plug insert injection molding machine
Function:
1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finish
at the same time, which is more safe and efficient for production , then reduce the cost of production.
2. High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatly extend machine & mold life.
3. Nitride and NIP/ Nitroflon coated screws and barrels are longlasting, robust and provide superior acid/alkaline resistance.Heavyduty double cylinder injection unit is maintenance friendly and free of oil leaks.
4. All series adapted Variable pump +PQ valves enable energy savings of 30~50%.
5. Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.

Specification for JY-250ST and JY-450ST
Model		Units	JY-250ST		JY-450ST
Injection System	Screw Diameter	mm	Φ28	Φ30	Φ30	Φ32	Φ34
	Injection Pressure	Kg/cm2	1278	886	1171	996	820
	Theoretical Shot volume	cm3	70.8	81	81	92	110
	Max. Shot Weight(P.S)	g	64	74	74	84	106
	Injection Rate	mm	115		115
	Max.Screw speed	rpm	0-205		0-190
	Temperature Control	ZONE	3		3
Clamping System	Clamping Force	T	35		45
	Platen Size	mm	540*380		580*430
	Distance Between Tie Bare	mm	375*205		410*250
	Min Mold Height	mm	158/58		220/70
	Opening Stroke	mm	180		200
	Max. Open Daylight	mm	338/238		420/270
	Ejector Force	T	1.3		1.76
	Ejector stroke	mm	35		35
Hydraulic System	Max. Hydraulic Pressure	Kg/cm2	140		140
	Pump Output	L	34.5		37.2
	Pump Motor Power	Kw	3.75/5.5HP		5.5/7.5HP
	Barrel Heating Power	Kw	2.4		2.8
	Total Wattage	Kw	6.3		9
Others	Machine Dimensions (L*W*H)	m	1.55*0.93*2.45		1.7*1.2*3
	Shipping Measurement (L*W*H)	m	1.76*1.15*2.3		1.92*1.3*2.3
	Machine Weight	T	1.5		2.4
	Shipping Weight	T	1.8		2.7

Packing & Shipping :
1. Before shipping,we will check and test the machine carfully.
2. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 25 days.
3. According to the destination,we will compare several transportation companies and select the most suitable
and economic one to provide service for us
FAQ:
Q1: Are you a trading company or a manufactory?
A1: We own a factory ourselves, and we can assure the quality we manufactured.

Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality afterservice. Also we have one year
warranty of the spareparts, free of charge.

Q3: Why choose Jieyang Machinery Co.,Ltd.?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally.
Excellent pre-sale and after-sale services.

---
