Sumore Manual Fresadora CNC Zx7032 Stand Drill Taiwan Mini Milling Machine in China

Product Description

Product Description

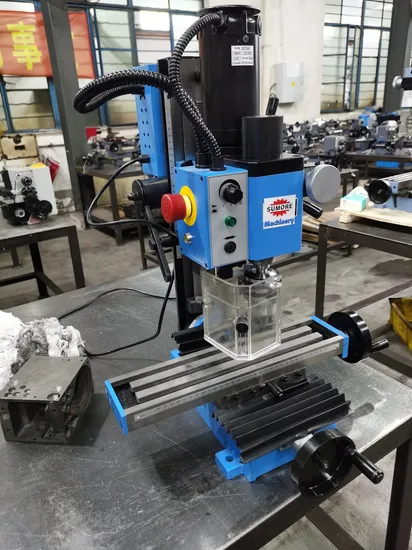

SP2203 Hobby desktop mini desktop mill drill milling machine Mini metal milling machine made in China, but same quality with Japanese made milling machine
Quick detais
1.Drilling capacity:13mm
2.End mill capacity:16mm
3.Spindle taper:MT3 or R8
4.Spindle speed: 100-2500rpm
5.Working tabel:390*92/460*120/400*145mm
6.Power:350W
Features/Advantages
1. Cast iron construction
2. Cross feed for drilling, fine for milling
3. Column tilts up to 45° for angled machining
4. Two electronically variable control spindle speed ranges
5. Two function machine - vertical mill or small pillar drill
6. Supplied with 10mm chuck, drawbar and service tools
Product Parameters

Model	SP2203
Drilling Capacity	13 mm
End Milling Capacity	16 mm
Face Milling Capacity	30 mm
Longitudinal Axis Travel (X)	100 mm
Cross Axis Travel (Y)	220 mm
Headstock Axis Travel (Z)	180 mm
Effective Worktable Size	390 x 92 mm
Throat Depth	170 mm
Spindle Taper	MT3 or R8
Spindle Speed Range	100 - 2,500 rpm
Distance Between Spindle to Table	280 mm
T-slot Amount	3
T-slot Size	12 mm
Head Tilt Angle (Left / Right)	45° / 45°
Motor Power	350 w
Voltage and Frequency	Customrized
Overall Dimension (LxWxH)	520 x 500 x 700 mm
Net Weight	50 kg
Packing Size (LxWxH)	550 x 550 x 730 mm
Gross Weight	68 kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
