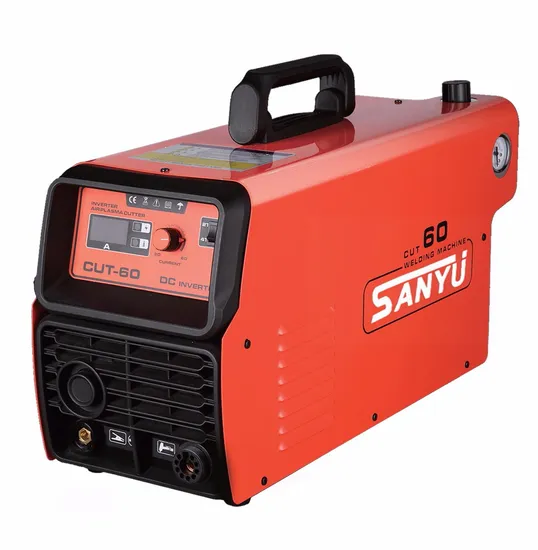

Cutting Machine High Frequency Plasma Cutter

Product Description

High frequency Compared with oxy-cutting,cutting capacity increased 2 times higher in cutting speed Suitable metal sheet can be cut easily and quickly Suitable for cutting stainless steel,copper,iron and aluminum etc. Simple operation and smooth cutting surface Non-touch arc-starting,less damage to the torch tips Supplied complete with plasma cutting torch and earth clamp,reducing valve and carton box
Product parameters

Model		CUT-60	CUT-80	CUT-100	CUT-120
power supply voltage		380±10%	380±10%	380±10%	380±10%
rated input capacity		7.8	11	15	19
frequency		20	20	20	20
rated input current		12	17.2	23	29.5
cutting current range		20-60	20-80	20-100	20-120
polit current		20	20	20	20
duty cycle(40ºC 10min)		40%	40%	60%	60%
no load voltage		280	280	310	310
max cutting thickness		18mm	25mm	30mm	40mm
cutting thickness	carbon steel	15mm	25mm	35mm	45mm
	stainless steel	12mm	20mm	30mm	35mm
	copper	10mm	18mm	25mm	30mm
	aluminum	8mm	14mm	20mm	25mm
IP		IP21S	IP21S	IP21S	IP21S
insulation class		F	F	F	F
cooling way		FAN&AIR	FAN&AIR	FAN&AIR	FAN&AIR
dimension		584*225*380	584*225*380	574*285*495	630*295*575
net weight		17.5	18	29	31

---
