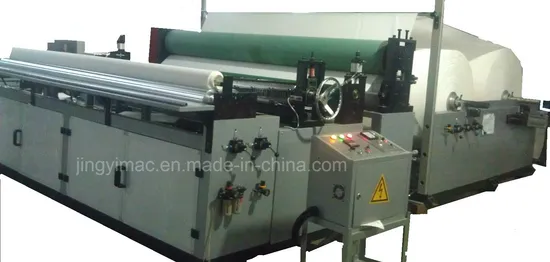

Semi-automatic toilet paper rewinding and perforating machine
Equipment Description: This is a semi automatic rewinding machine for toilet paper and kitchen towel, with the function of embossing, perforating, trim sealing and so on. Can also do kitchen towel with lamination unit. This machine is designed and made according to CE certificate standard, with safety safety-guard door, emergency stop and other safety devices, to protect operators. This equipment is durable and wearable with simple operation and maintaining. Full Automatic Toilet Paper Machine Main Technical Parameter:
| Max jumbo roll width | 1750mm (other size can be ordered)
Can order from 1200mm to 2800mm |
| Max jumbo roll diameter | φ1100mm(for bigger size can be ordered) |
| Jumbo roll inner diameter | 3inches (76.2mm) |
| Finished products diameter | φ60-150mm |
| Perforated distance | 100-150mm (other size can be ordered) |
| Production speed | 0~120m/min |
| Machine power | 7.5~22kw (depends on machine model) |
| Roll core unit | With or without roll core |
| Jumbo roll stands | 1~3 stands (standard is 2) |
| Embossing unit | Single embossing, double embossing (steel to rubber roller, steel to paper roller, steel to steel roller) |
| Jumbo roll loading | With air cylinder loading |
| Parameter setting | Man-machine interface operation, Touch screen |
| Machine overall dimension | 3500*2500*1500~56000*3500*1500mm |
| Machine weight | 1500~4000KG (approximately) |
| Remote controlling | Depends on customer |
| Lamination unit | Can be ordered |
