3 Point Offset Flail Ditch Bank Mower

Product Description

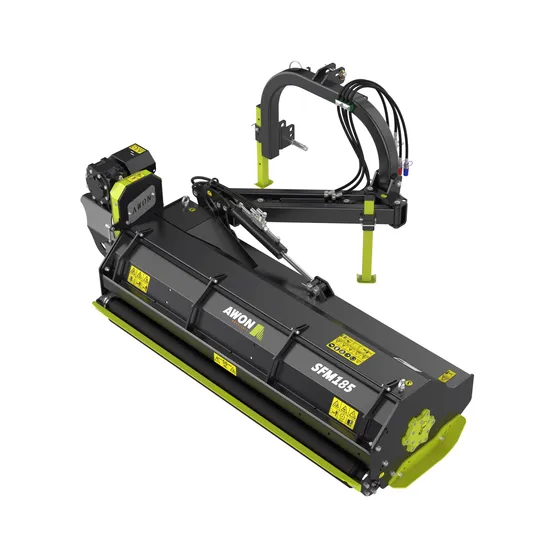

Awon Rear-Side Flail Mower
SFM rear-side series are rear mounted,PTO driven flail mowers for tractors. 10 models in total,working width varies from 1,200 to 2,400mm,power demand 25-130HP.SFM series can be typically aggregated with tractors with 3-point hitch of Cat.I or II.SFM with paralellogram arm, enables operation in-line or at the side of the tractor.Down-tilt angle can reach up to 45°, which is perfect whenever road shoulders and slopes need to be mowed (tilt angle between -45°; +90°).SFM series are specially designed for carriageway maintenance,green belts,scarps,embankments,road shoulders or ditches.
The mowers cut the grass and spread it properly crumbled along the whole width of the cut surface.It enables forming a natural swath and plant offcut mineralization.
Standard Equipment • Shaft with double flail spiral
• Overrunning clutch integrated with gearbox
• Mechanical safety breakaway device
• Mowing height adjustment with ground following bar
• Wide-angle PTO shaft
• Automatic tension of V-belts
• Hammer Blades
• 3-point hitch
Main Features 1.Boom reach up: up to 90°,down to -45°
2.Boom reach out: 80 degrees offset
3.Transport: AWON series transport places the cutter head to the rear of the tractor for optimum operator visibility
4.Operation:
1)Enables rise of the machine when obstacle is met
2)Owing to the paralellogram arm works perfectly for heavy-duty road maintenance assignments

Model	Dimension(mm)	Weight(Kg)	Cutting Width(mm)	PTO Input Speed	Number of blades	Tractor Power (HP)
SFM120	1354*1544*888	316	1200	540	18	25-40
SFM140	1554*1544*888	334	1400	540	20	30-50
SFM160	1754*1544*888	354	1600	540	24	30-50
SFM165	2152*1677*954	443	1650	540	18	60-80
SFM185	2352*1677*954	460	1850	540	22	60-80
SFM205	2552*1677*954	507	2050	540	24	60-80
SFM180	2281*1962*1048	679	1800	540	16	90-120
SFM200	2481*1962*1048	712	2000	540	18	90-120
SFM220	2681*1962*1048	743	2200	540	20	90-120
SFM240	2881*1962*1048	772	2400	540	22	90-120

AWON GROUP founded in 2006 which headquarter in the Netherlands is an integrated solution provider for modern Agricultural, Orchard and Gardening applications. With much effort of these years, AWON machinery gradually grows up to a pioneer in modern agriculture from designing to manufacturing a wide range of agricultural implements which used in commercial crops and field crops, including: Mower, mulcher, wood shredder, cotton baler, straw baler etc. With AWON GROUP's excellent design concepts and reliable product performance to help users improve operating efficiency, reduce usage costs, and increase profits, thereby protecting the ecological environment and achieving sustainable development of agriculture and nature.
The following are our patent certificates: Design Patent (mulcher), Utility Patent (branch mulcher, mulcher blades, pick-up branch mulcher and telescopic mower)
The following are our original hand-painted drawings, originality has always been our pursuit!

---
