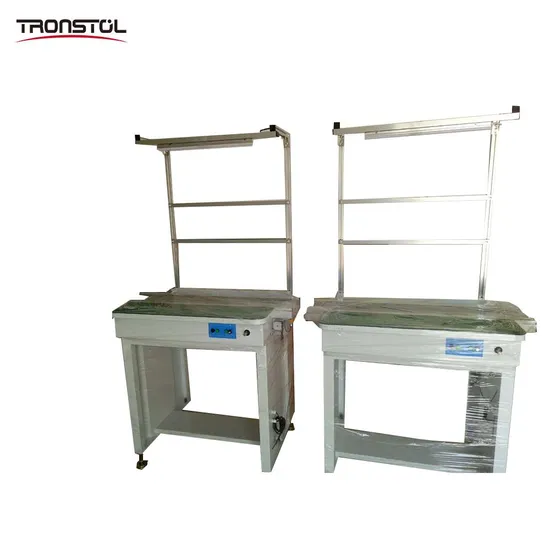

Automated SMT Conveyor for Efficient PCB Assembly Line with LED

Product Description

Automated SMT Conveyor for Efficient PCB Assembly Line with LED Product Description
1, precision screw width adjusting, guarantee transportation guide rail parallel to each other;
2, the professional wear-resistant anti-static flat belt, special aluminum rails, ensure smooth transportation of feeder, smooth;
3,standard with a signal connector, and other equipment on line feeder;
4,according to the customer request manufacture rail length ranging from feeder table;
5,equipped with anti-static rubber, in order to better prevent electrostatic;
Specification:

Specification
Model	FSM series connected to Taiwan
Outline dimensions	1000*800*1750mm
PCB width	50-350mm
Transport height	900±20mm
PCB transport direction	L-R(R-L)
PCB transport velocity	0~1500mm
Power supply	AC220V1P 50/60Hz
Power consumption	Approx.30W
Track length	500,800,1000,1200,1500,2000,(Special custom)
Control mode	PLC card
Lighting	T5 energy saving lamp
Weight	About Approx80KG
