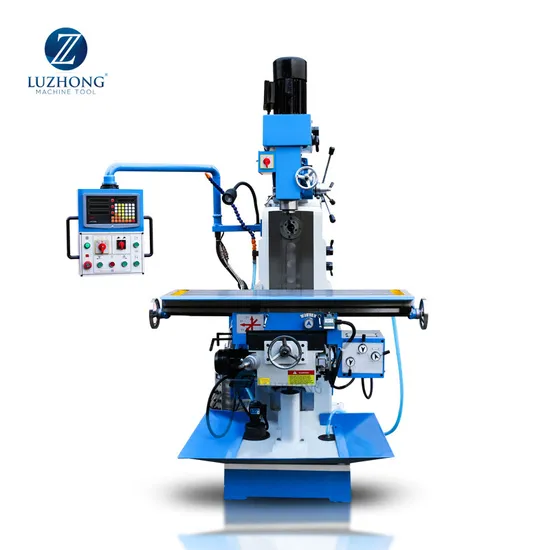

Auto Feed Vertical Metal Knee Drilling and Milling Machine ZX6350A

Product Description

Auto Feed Vertical Metal Knee Drilling and Milling Machine ZX6350A
Product Description
The main performance characteristics:
1.Gear transmission for vertical/horizontal milling head
2.X /Y/Z axis auto feed
3.Headstock swivel +/-45°
4.Guide way with sparking quenching Product Parameters
Product main technical parameters:

Specifications	Units	ZX6350A
Table size	mm	1250X320
T Slot number/width/pitch	mm	3/14/70
Longitudinal travel	mm	600
Cross travel	mm	300
Vertical travel	mm	300
Beam travel	mm	300
Vertical spindle axis to column surface	mm	200-500
Vertical spindle nose to table surface	mm	90-390
Horizontal spindle axis to table surface	mm	0-300
Horizontal spindle axis to beam surface	mm	175
Vertical spindle speeds	R/min	115-1750 8 steps
Horizontal milling spindle speeds	R/min	40-1300 12 steps
Vertical spindle taper		MT4
Horizontal spindle taper		MT4
Vertical spindle travel	mm	120
Main motor power	kw	0.85/1.5(V),2.2(H)
Vertical milling bead swivel angle	°	±45
Table X/Y axis auto feed speed	Mm/min	22-555(8 steps)(rapid:840)
Table Z axis auto feed speed	Mm/min	560
X/Y axis feed motor	w	750
Z axis feed motor	w	750
Overall dimensions	mm	1680x1550x2100
Net weight	Kg	1450

Detailed Photos

Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
